Slope-specific layout
The raked panel format addresses a stair’s incline and its connection to landings.

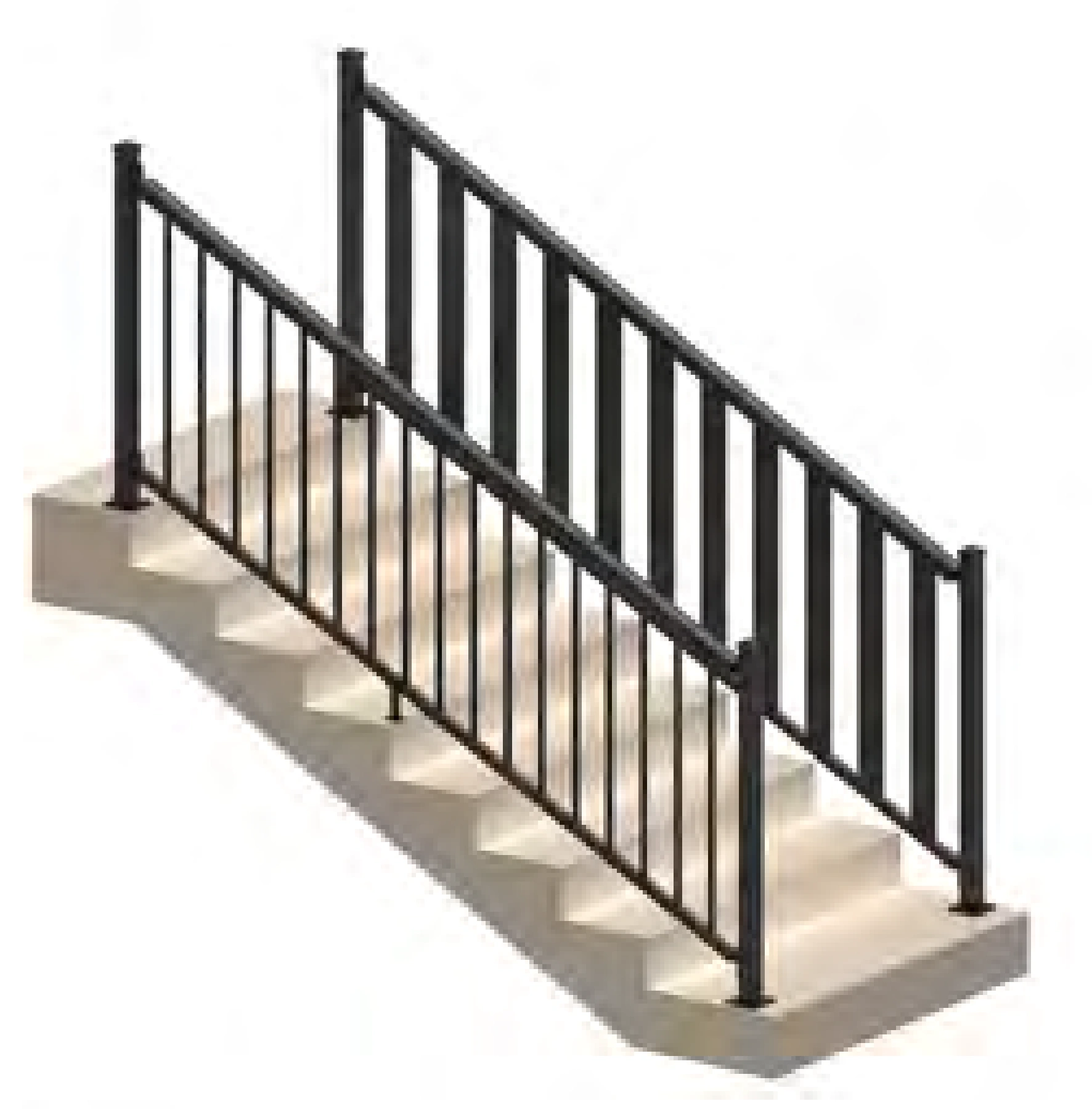

Raked Stair Railing · product view
Railings ↗
Raked Stair Railing
Raked panels follow a stair slope using an assembled rail, post and infill arrangement.
- Stair and slope applications.
- Provide the stair angle and site dimensions for the specification review.
Wholesale · OEM / ODM · Project supply
OverviewBenefitsProduct viewsFunctionsSpecificationsIn useUse & careProject checklistApplications & optionsEnquire
PRODUCT AT A GLANCE
Raked Stair Railing: key details.
Raked panels follow a stair slope using an assembled rail, post and infill arrangement.
- Configuration
- Raked assembly panel
- Infill options shown
- Pickets or tempered glass
- Components
- Top rail, bottom rail, cover, posts, caps and brackets
Catalogue reference for this product. Final dimensions, materials, components and packing are confirmed for the selected configuration.
THE PRODUCT / Railings
Follow the stair route.
Raked railing follows the slope of a stair rather than repeating a level terrace panel. Rails, posts and the selected picket or tempered-glass infill need to work with the actual angle and changes in level. Provide the stair geometry, landing layout and supporting construction when developing the specification. This allows the stair section and adjacent level railing to be considered as one continuous project arrangement.
SPECIFICATION-LED SUPPLY
Plan the product, components and finish around your market and project.
WHY CHOOSE THIS DESIGN
The details that make a difference.
Picket or glass infill
The illustrated alternatives give different visual treatments within the stair railing concept.
Coordinated transitions
Posts and brackets can be reviewed around the junctions between sloping and level sections.
PRODUCT VIEWS
A setting. A closer look.
Raked Stair Railing in context, with closer views of its form and finish.

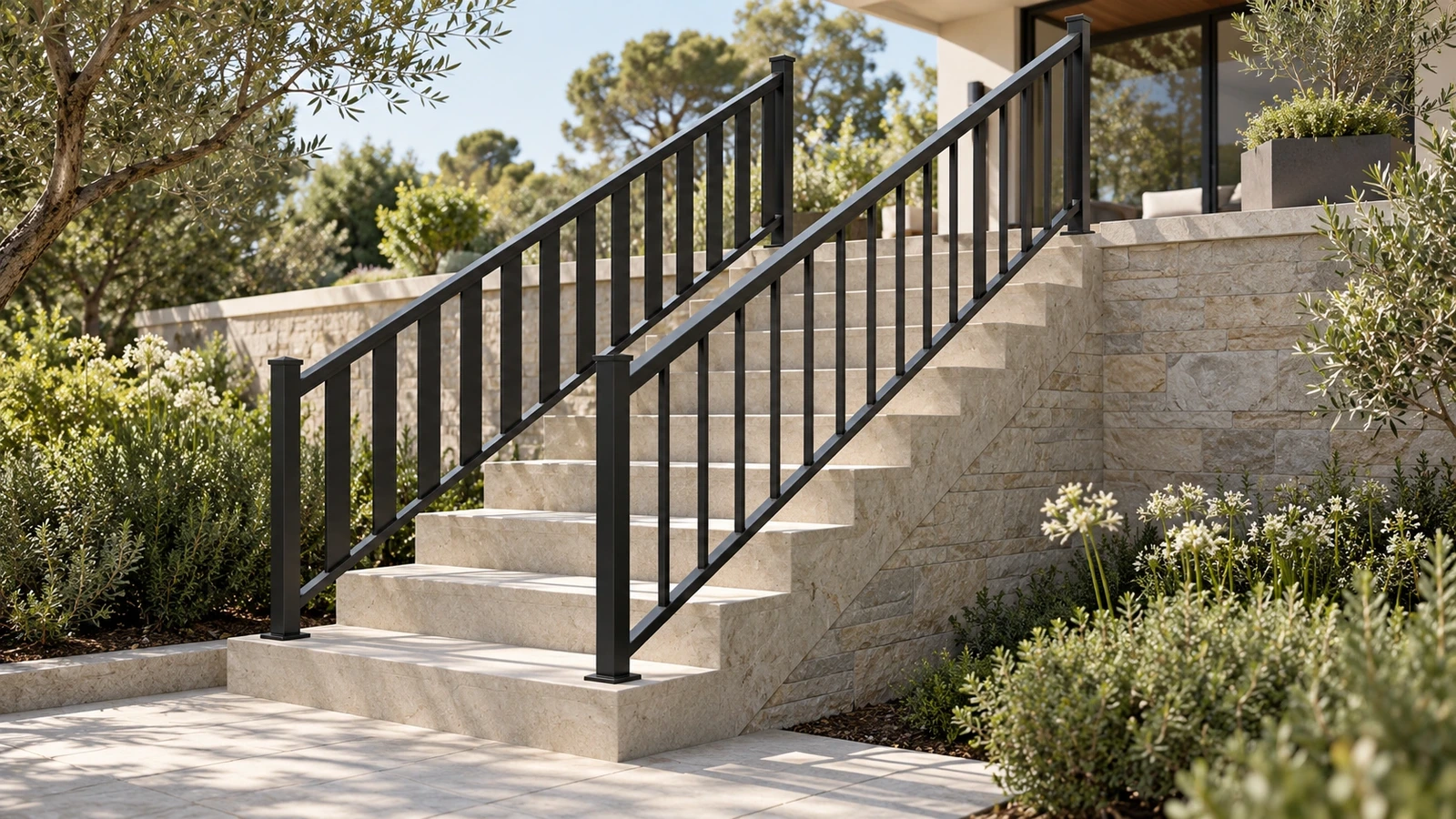

Raked railings along a garden stair

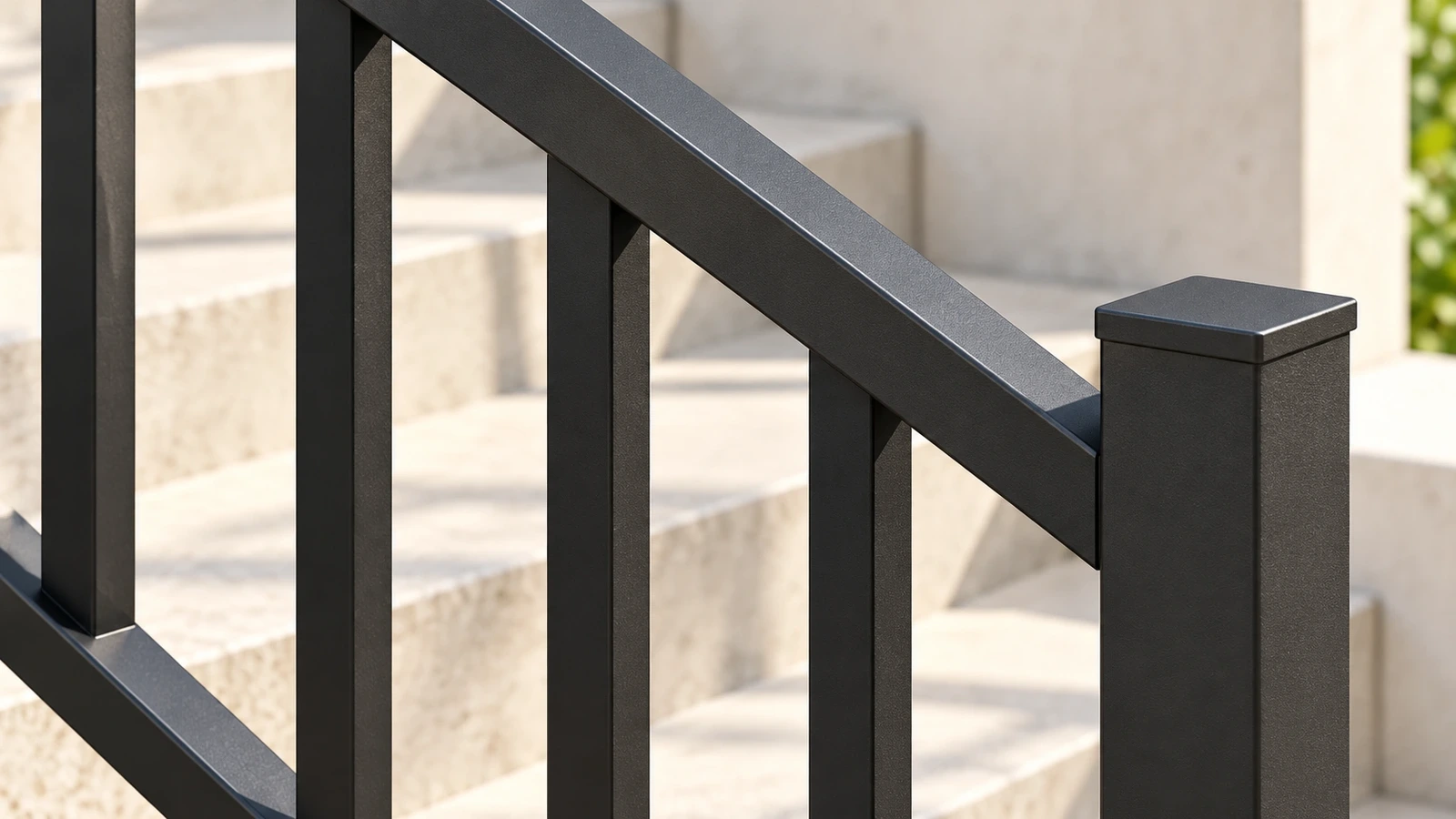

Sloping rail and upright picket detail
PRODUCT INFORMATION
Specifications & options.
Use these details to start your product selection.
| Configuration | Raked assembly panel |
|---|---|
| Infill options shown | Pickets or tempered glass |
| Components | Top rail, bottom rail, cover, posts, caps and brackets |
Final dimensions, materials, fittings and packing are confirmed against your selected configuration.
PLAN YOUR PROJECT
Applications & configuration.
Explore uses, installation choices and options for your product.
Sloping installations
Raked assemblies adapt the railing layout to stairs and sloped runs. Coordinate rail angles, infill and the transition to adjoining level sections.
Component coordination
Select stair posts, brackets and covers to match the railing system. Supply the site measurements before the assembly components are finalised.
HOW IT WORKS
Form with a practical purpose.
Follow the stair route
Set the railing arrangement around the measured incline and the intended path between levels.
Connect landings and stairs
Resolve changes of angle and terminal connections as part of the complete railing layout.
IN USE / THE SETTING
Raked Stair Railing in context.
A defined outdoor edge

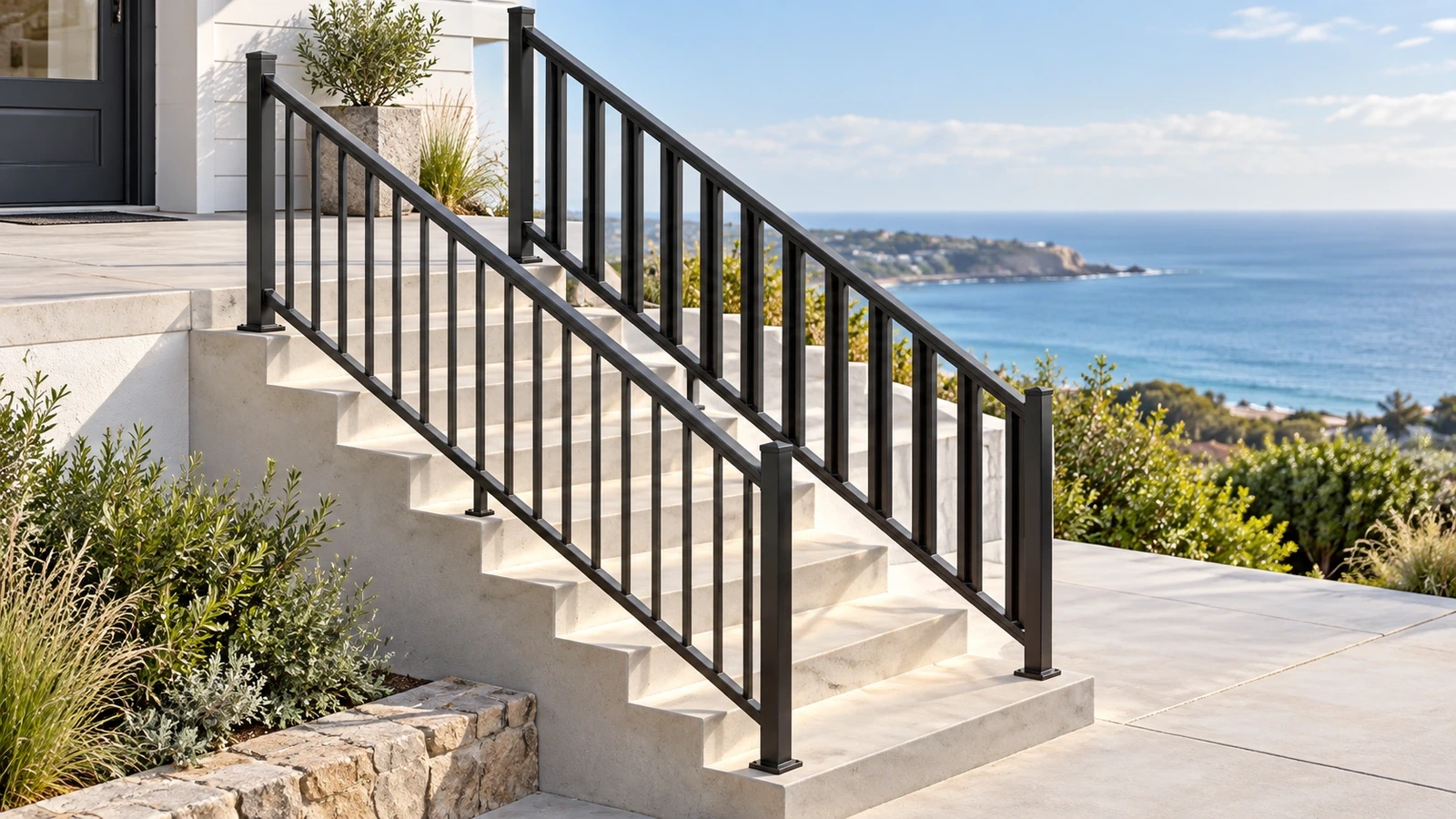

Graphite stair railing with capped square posts, vertical pickets and sloping upper and lower rails beside white coastal house steps.
Plan your specification ↗USE & MAINTENANCE
From the first fitting to everyday use.
General guidance for planning and looking after this product. Follow the installation and operating instructions supplied for your exact configuration.
Review the complete layout
Provide plan dimensions, changes in level, stair angles and supporting construction. Agree the project-specific glass, panel and fixing specification.
Install to approved details
Use the selected system’s component drawings and project anchoring details. Have the completed railing checked before the space is brought into use.
Everyday use
Use the stair and railing in the intended arrangement. Keep the access route clear and report movement at angle brackets, posts or infill connections.
Keep it in good condition
Clean accessible members without using the railing as support for maintenance equipment.
PREPARE YOUR SPECIFICATION
A practical checklist for your enquiry.
Use these points to organise a trade brief or site layout for Raked Stair Railing.
Complete railing layout
Include lengths, corners, stairs, slopes and wall junctions. Identify the substrate and edge conditions.
Selected system
Confirm panels, posts, handrails and fittings; for glass systems, agree the glass specification with the project team.
Project requirements
Review anchoring and local performance requirements for the exact configuration with the responsible designer.
Include drawings, estimated quantity, destination and finish when discussing your configuration.
IN USE / ANOTHER PERSPECTIVE
A place for Raked Stair Railing.
A second setting for the same structure

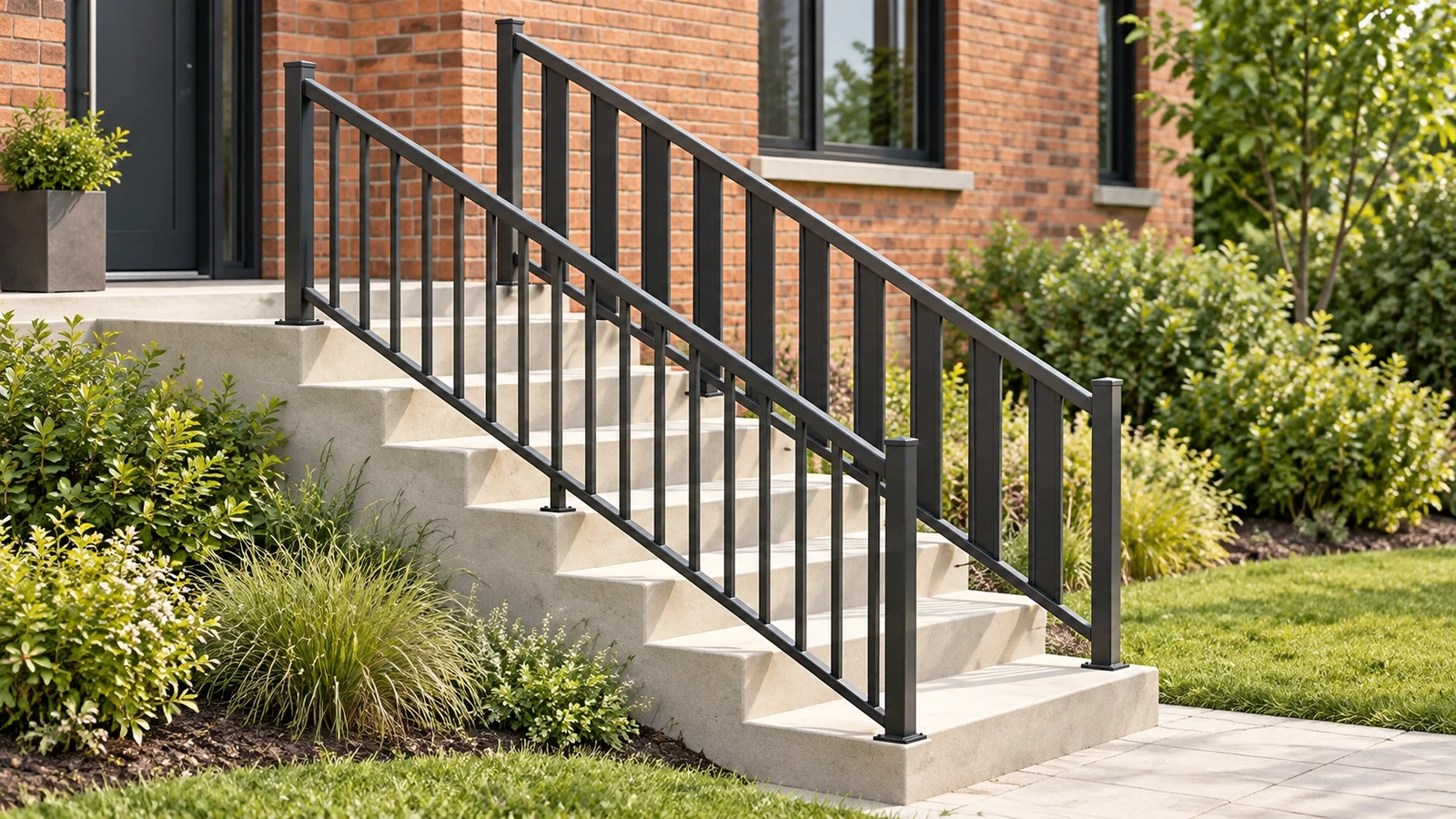

Graphite picket railings following both sides of straight stone garden steps beside a red-brick house.
Plan your specification ↗PRODUCT QUESTIONS
A clearer starting point.
What should I include when enquiring about Raked Stair Railing?
Share the required dimensions, quantity, finish, destination and installation layout. Railings components and options should be confirmed for the selected configuration. Include drawings or reference images when you email the team.
How should this product be used and maintained?
Use the stair and railing in the intended arrangement. Keep the access route clear and report movement at angle brackets, posts or infill connections. Inspect angle connections and any glass retaining details, especially at the ends of the stair run.
Which specifications are listed for Raked Stair Railing?
The illustrated product lists Configuration: Raked assembly panel; Infill options shown: Pickets or tempered glass; Components: Top rail, bottom rail, cover, posts, caps and brackets. Confirm the final specification for your selected configuration.
How do I prepare the site information?
Provide plan dimensions, changes in level, stair angles and supporting construction. Agree the project-specific glass, panel and fixing specification. Share the layout with the responsible installer and our team before finalising the product schedule.
BUILD A COORDINATED OUTDOOR RANGE
Explore complementary products.
Coordinate appearance and site requirements across the space. Confirm product compatibility and installation details separately.
TRADE & PROJECT ENQUIRIES
Make it part of your next project.
Share the quantity, destination, dimensions and finish you need.
