Illustrated manual operation
The shown handle makes the roof’s operating arrangement part of the layout and usability review.
Double-layer Pergola · Model 4 · product view
Pergolas ↗
Double-layer Pergola · Model 4
A double-layer louvred roof with an illustrated manual operating handle. Configuration: Freestanding or Wall Mounted.
- Control sunlight using the louvred roof arrangement.
- Choose the model first, then confirm dimensions, frame sections and optional additions.
- Configuration: Freestanding or Wall Mounted.
Wholesale · OEM / ODM · Project supply
OverviewBenefitsProduct viewsFunctionsSpecificationsIn useUse & careProject checklistApplications & optionsEnquire
PRODUCT AT A GLANCE
Double-layer Pergola · Model 4: key details.
A double-layer louvred roof with an illustrated manual operating handle. Configuration: Freestanding or Wall Mounted.
- Roof system
- Double-layer aluminium louvres
- Configuration
- Freestanding or Wall Mounted

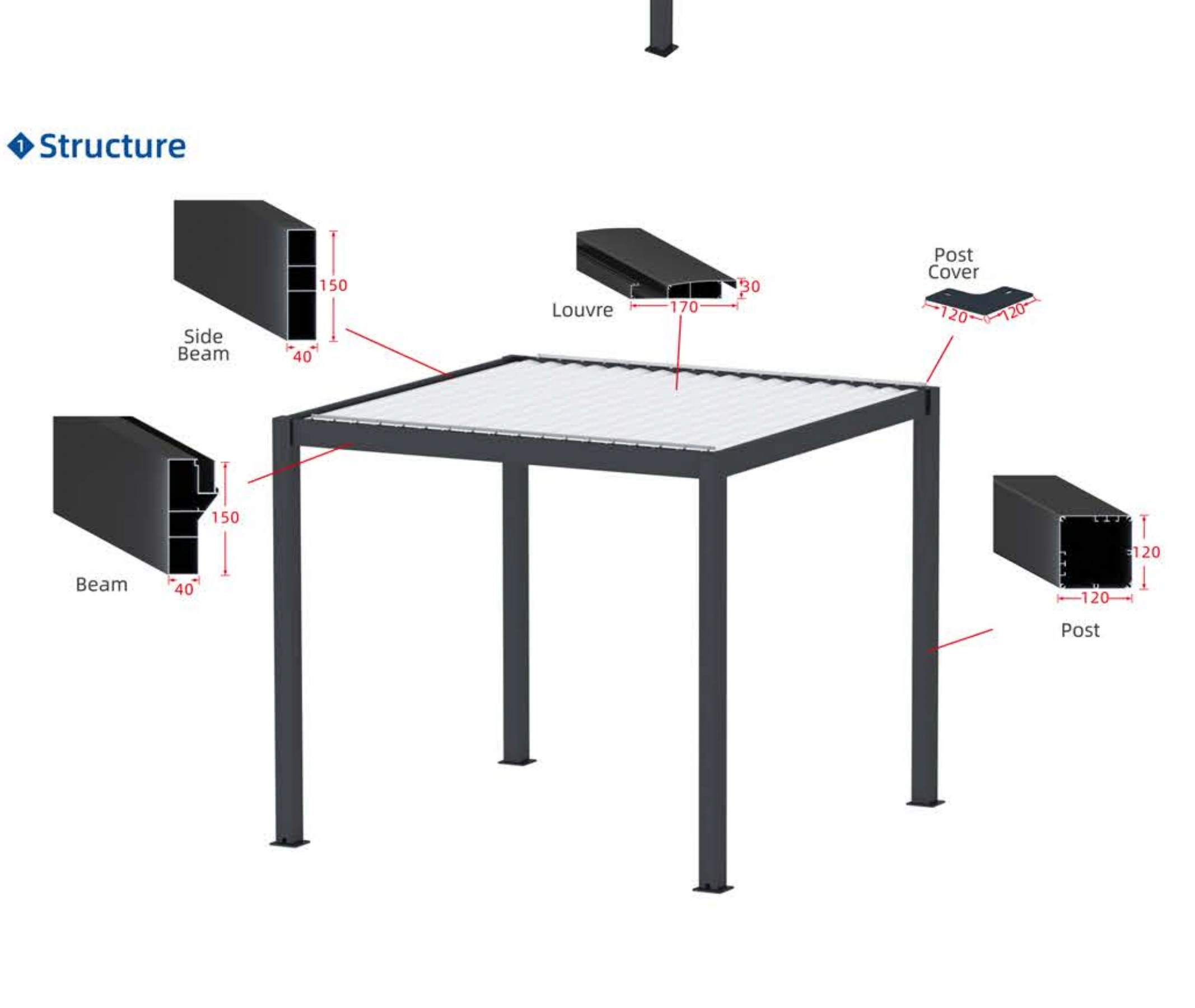

- Structure
- Model-specific beam, louvre and post profiles
Catalogue reference for this product. Final dimensions, materials, components and packing are confirmed for the selected configuration.
THE PRODUCT / Pergolas
Change sunlight manually.
Model 4 brings a double-layer aluminium louvred roof to a four-post structure, with a manual operating handle illustrated in the catalogue. It gives users a direct way to change the roof arrangement above a terrace or garden seating space. The frame, louvres and connections belong to this specific model. Plan the overall footprint and handle access alongside furniture and circulation routes before confirming the configuration. Configuration: Freestanding or Wall Mounted. Confirm the supporting surfaces, mounting interfaces and model-specific components for the selected arrangement.
SPECIFICATION-LED SUPPLY
Plan the product, components and finish around your market and project.
WHY CHOOSE THIS DESIGN
The details that make a difference.
Double-layer aluminium louvres
A dedicated roof construction gives Model 4 its own identity within the pergola range.
Four-post structure
The illustrated support layout gives a clear starting point for terrace planning and post placement.
PRODUCT VIEWS
Pergola views. Outdoor settings.
Explore different finishes, garden settings and outdoor layouts.
Pergola with louvred privacy panels
Illuminated pergola at dusk
PRODUCT INFORMATION
Specifications & options.
Use these details to start your product selection.
| Roof system | Double-layer aluminium louvres |
|---|---|
| Configuration | Freestanding or Wall Mounted |
| Structure | Model-specific beam, louvre and post profiles |
| Options | Discuss side screens, enclosure and layout requirements |
Final dimensions, materials, fittings and packing are confirmed against your selected configuration.
PLAN YOUR PROJECT
Applications & configuration.
Explore uses, installation choices and options for your product.
Light & shade control
Adjustable louvres change the amount of sunlight beneath the roof, creating a sheltered setting for dining, entertaining or relaxing outdoors.
Optional additions
The product family includes side-screen and lighting arrangements. Confirm compatibility with the selected model; motorisation and rain-sensor control must be specified separately where available.
HOW IT WORKS
Form with a practical purpose.
Change sunlight manually
Use the supplied handle to move the roof to the position described in the model’s instructions.
Define a garden gathering space
Position the post footprint around a dining or seating arrangement with access to the operating handle.
IN USE / THE SETTING
Double-layer Pergola · Model 4 in context.
Pergola with glass panels and a side screen
Pergola with glass panels and a side screen
Plan your specification ↗USE & MAINTENANCE
From the first fitting to everyday use.
General guidance for planning and looking after this product. Follow the installation and operating instructions supplied for your exact configuration.
Plan the footprint
Measure the terrace and identify post positions, access routes and the supporting surface. Confirm the selected model, operation and any compatible side options.
Prepare and install
Use the model-specific drawings and approved foundation and fixing details. Check the frame and roof mechanism before operating the structure.
Everyday use
Turn the manual handle as directed, keeping hands and objects away from the moving blades. Stop if operation becomes stiff; do not force the mechanism.
Keep it in good condition
Keep the handle and accessible moving joints clean according to the supplied maintenance guidance.
PREPARE YOUR SPECIFICATION
A practical checklist for your enquiry.
Use these points to organise a trade brief or site layout for Double-layer Pergola · Model 4.
Footprint and circulation
Provide the terrace dimensions, post locations and routes around furniture, doors and seating.
Roof and operation
Confirm the model, roof material and operating arrangement. Identify any compatible side treatments you wish to discuss.
Installation interface
Include site conditions, supporting construction and services. Agree foundation, fixing and drainage interfaces for the selected model.
Include drawings, estimated quantity, destination and finish when discussing your configuration.
IN USE / ANOTHER PERSPECTIVE
A place for Double-layer Pergola · Model 4.
Graphite pergola in a contemporary garden
Graphite pergola in a contemporary garden
Plan your specification ↗PRODUCT QUESTIONS
A clearer starting point.
What should I include when enquiring about Double-layer Pergola · Model 4?
Share the required dimensions, quantity, finish, destination and installation layout. Pergolas components and options should be confirmed for the selected configuration. Include drawings or reference images when you email the team.
How should this product be used and maintained?
Turn the manual handle as directed, keeping hands and objects away from the moving blades. Stop if operation becomes stiff; do not force the mechanism. Inspect frame and operating connections, and arrange service if movement becomes uneven or difficult.
Which specifications are listed for Double-layer Pergola · Model 4?
The illustrated product lists Roof system: Double-layer aluminium louvres; Configuration: Freestanding or Wall Mounted; Structure: Model-specific beam, louvre and post profiles. Confirm the final specification for your selected configuration.
How do I prepare the site information?
Measure the terrace and identify post positions, access routes and the supporting surface. Confirm the selected model, operation and any compatible side options. Share the layout with the responsible installer and our team before finalising the product schedule.
BUILD A COORDINATED OUTDOOR RANGE
Explore complementary products.
Coordinate appearance and site requirements across the space. Confirm product compatibility and installation details separately.
TRADE & PROJECT ENQUIRIES
Make it part of your next project.
Share the quantity, destination, dimensions and finish you need.
