A dedicated walking entrance
Separate pedestrian access can organise movement through the frontage without using the main driveway opening.
Pedestrian Gates · product view
Gates ↗
Pedestrian Gates

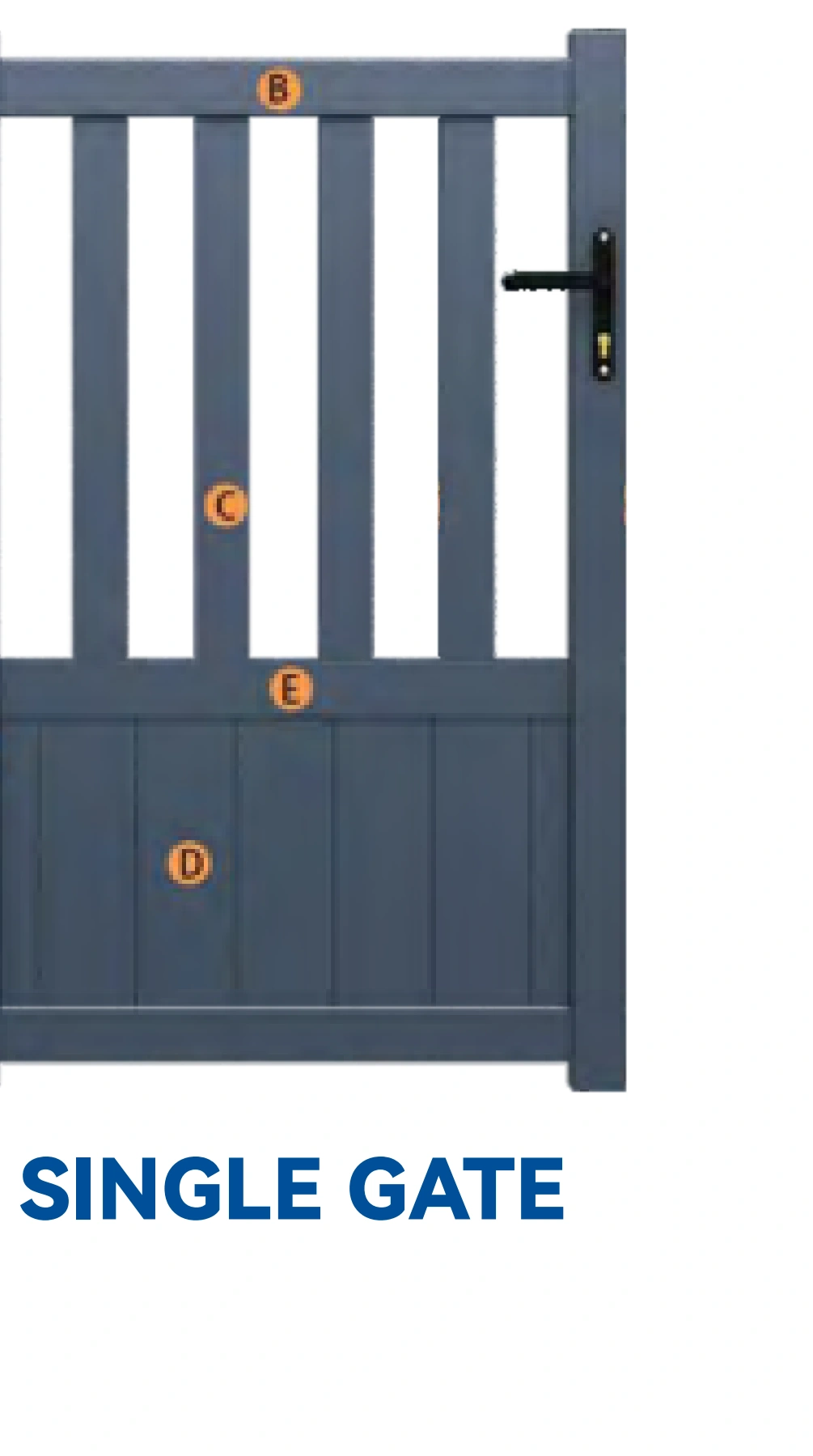

Single-leaf gates provide pedestrian access and can be coordinated with the double or sliding gate designs in the same range.
- Matching infill styles for coordinated entrances.

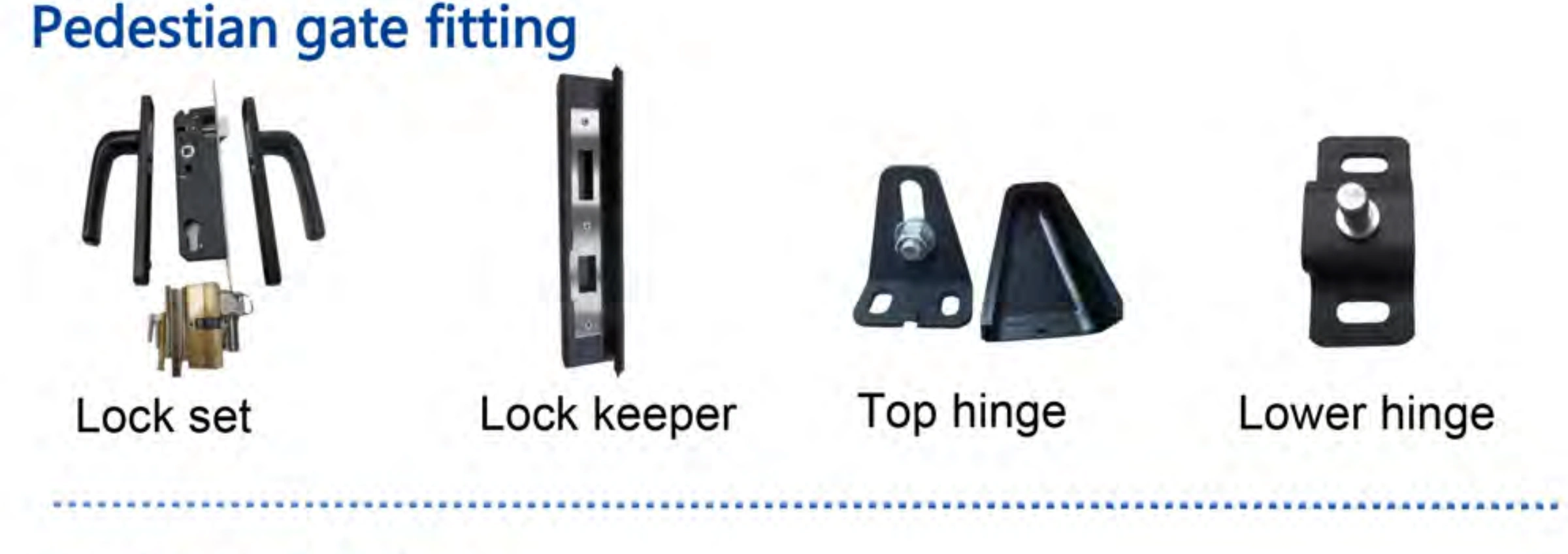

- Lock set, lock keeper, top hinge and lower hinge options.
Wholesale · OEM / ODM · Project supply
OverviewBenefitsProduct viewsFunctionsSpecificationsIn useUse & careProject checklistApplications & optionsDesign detailsEnquire
PRODUCT AT A GLANCE
Pedestrian Gates: key details.
Single-leaf gates provide pedestrian access and can be coordinated with the double or sliding gate designs in the same range.
- Material
- Aluminium
- Finishes
- Powder-coated and wood-grain options
- Customisation
- Colours and sizes
Catalogue reference for this product. Final dimensions, materials, components and packing are confirmed for the selected configuration.
THE PRODUCT / Gates
Guide everyday access.
A pedestrian gate gives the entrance a dedicated route for everyday foot traffic. A single leaf can coordinate with a driveway gate or adjoining fence through its infill pattern and finish. Choose the opening direction and clear passage around the way people approach the property, then select the hinges, lock and keeper to suit the leaf and supporting posts. The result is a more coherent entrance rather than an isolated access panel.
SPECIFICATION-LED SUPPLY
Plan the product, components and finish around your market and project.
WHY CHOOSE THIS DESIGN
The details that make a difference.
Matching design options
Slat, solid, picket and decorative infill can be coordinated with the wider gate and fence range.
Defined hardware choices
Hinges, lock sets and keepers can be selected around the actual leaf and post arrangement.
PRODUCT VIEWS
A setting. A closer look.
Pedestrian Gates in context, with closer views of its form and finish.

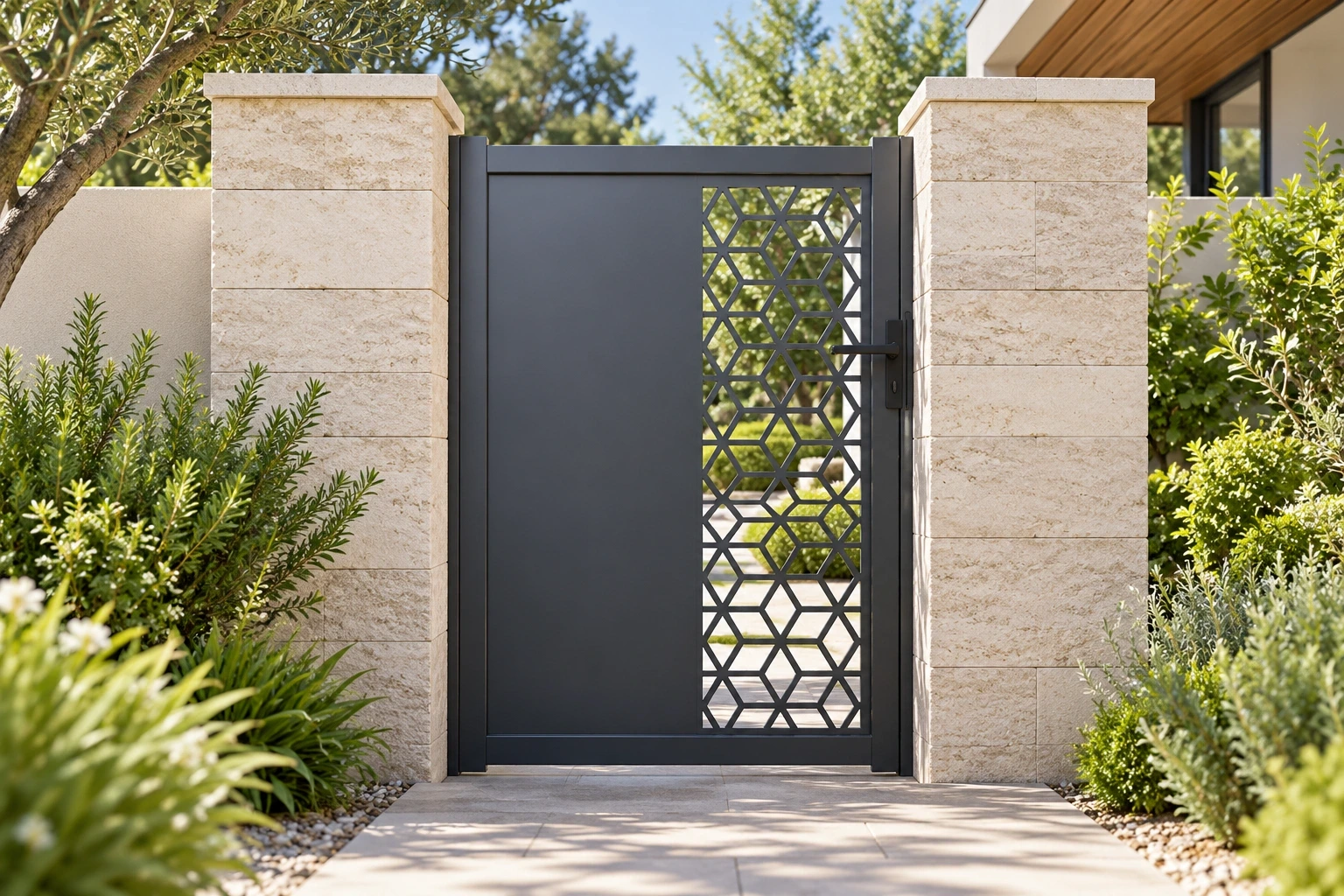

Decorative pedestrian gate at a garden entry

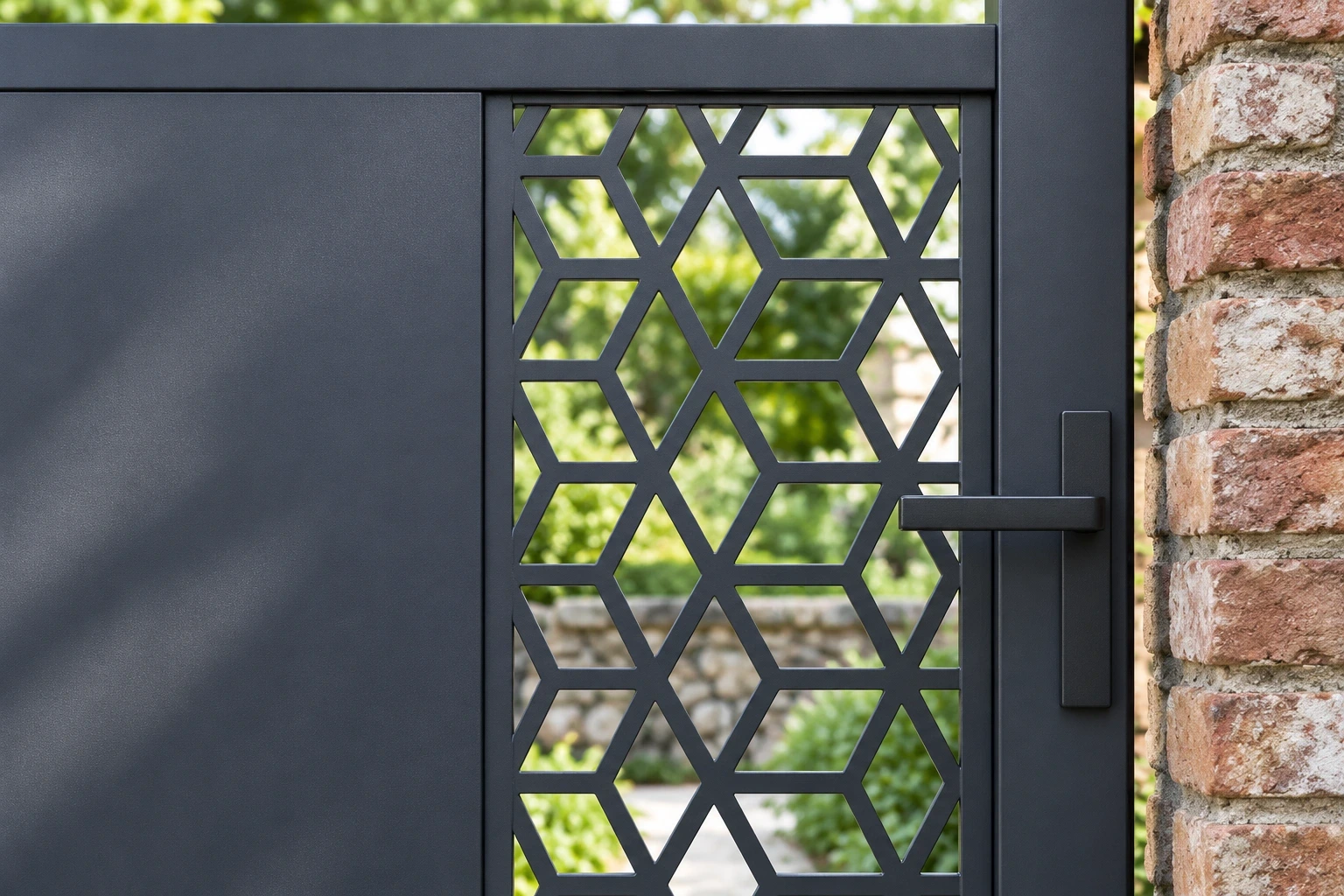

Geometric infill and gate handle
PRODUCT INFORMATION
Specifications & options.
Use these details to start your product selection.
| Material | Aluminium |
|---|---|
| Finishes | Powder-coated and wood-grain options |
| Customisation | Colours and sizes |
| Infill designs | Slat, solid, picket and decorative cut-panel options |
| Reference leaf W × H | 900, 1000, 1100 or 1200 × 1600 mm |
Reference dimensions
| Leaf width (mm) | Leaf height (mm) | Overall W1 (mm) | Overall H1 (mm) |
|---|---|---|---|
| 900 | 1600 | 947 | 1680 |
| 1000 | 1600 | 1047 | 1680 |
| 1100 | 1600 | 1147 | 1680 |
| 1200 | 1600 | 1247 | 1680 |
W and H identify the product dimensions; W1 and H1 identify the overall dimensions shown for the illustrated assembly.
Final dimensions, materials, fittings and packing are confirmed against your selected configuration.
PLAN YOUR PROJECT
Applications & configuration.
Explore uses, installation choices and options for your product.
Coordinated pedestrian entrances
A single-leaf gate provides everyday access alongside larger driveway gates. Coordinate its infill and finish with the surrounding fence.
Supply & assembly
The DIY range includes pre-cut, pre-drilled components for assembly without welding. Confirm kit or fabricated supply and the matching hinge, lock and keeper set for your chosen design.
HOW IT WORKS
Form with a practical purpose.
Guide everyday access
Place the opening around the walkway and the chosen direction of travel through the boundary.
Close the entrance
The specified latch or lock arrangement provides the chosen method of holding and operating the gate.
A CLOSER LOOK
Design & construction.
Explore the illustrated components and configuration options. Select an image to enlarge it.
IN USE / THE SETTING
Pedestrian Gates in context.

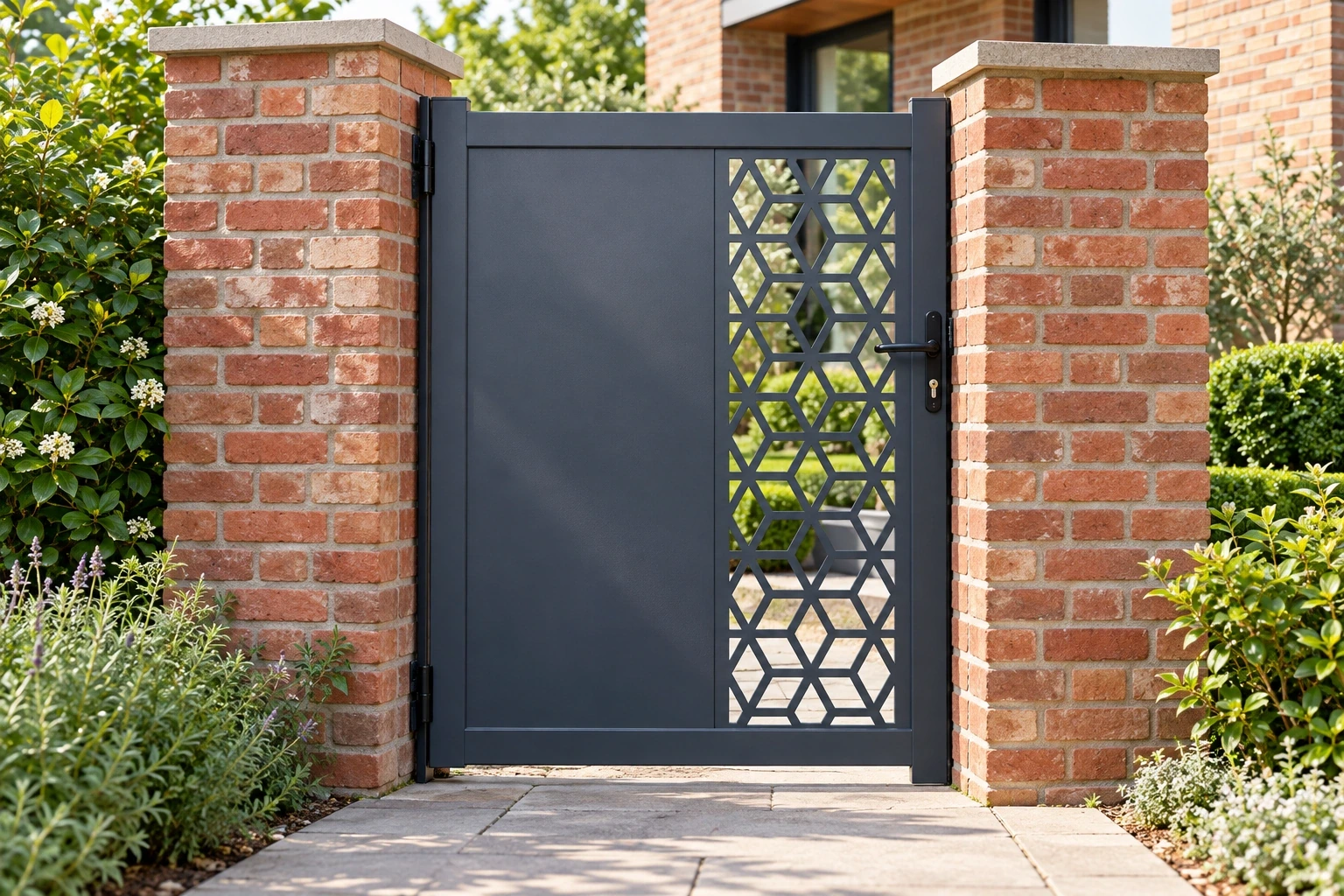

Decorative pedestrian gate at a garden entrance
A graphite single-leaf pedestrian gate with a closed left panel and tall geometric cutout insert at a brick garden entrance.
Plan your specification ↗USE & MAINTENANCE
From the first fitting to everyday use.
General guidance for planning and looking after this product. Follow the installation and operating instructions supplied for your exact configuration.
Survey the entrance
Measure the clear opening, post positions, ground slope and available movement space. Confirm the opening direction, hardware and any power requirements.
Install and commission
Follow the approved gate and hardware drawings. Check alignment, stops and operating clearance; powered equipment should be commissioned by the responsible installer.
Everyday use
Open the leaf within its intended swing and close it using the selected latch or lock. Keep the hinge side and operating gap clear of fingers and objects.
Keep it in good condition
Clean the gate faces and inspect hinge, lock and keeper alignment.
PREPARE YOUR SPECIFICATION
A practical checklist for your enquiry.
Use these points to organise a trade brief or site layout for Pedestrian Gates.
Clear opening and movement
Provide the clear opening, leaf layout and ground levels. Allow for the swing arc or sliding run of the chosen design.
Hardware and operation
Agree the hinges, locking arrangement, stops and any track or roller requirements. Confirm responsibility for powered equipment.
Entrance package
Coordinate posts, infill, finish and adjoining fencing. Include access direction and the intended daily use.
Include drawings, estimated quantity, destination and finish when discussing your configuration.
IN USE / ANOTHER PERSPECTIVE
A place for Pedestrian Gates.

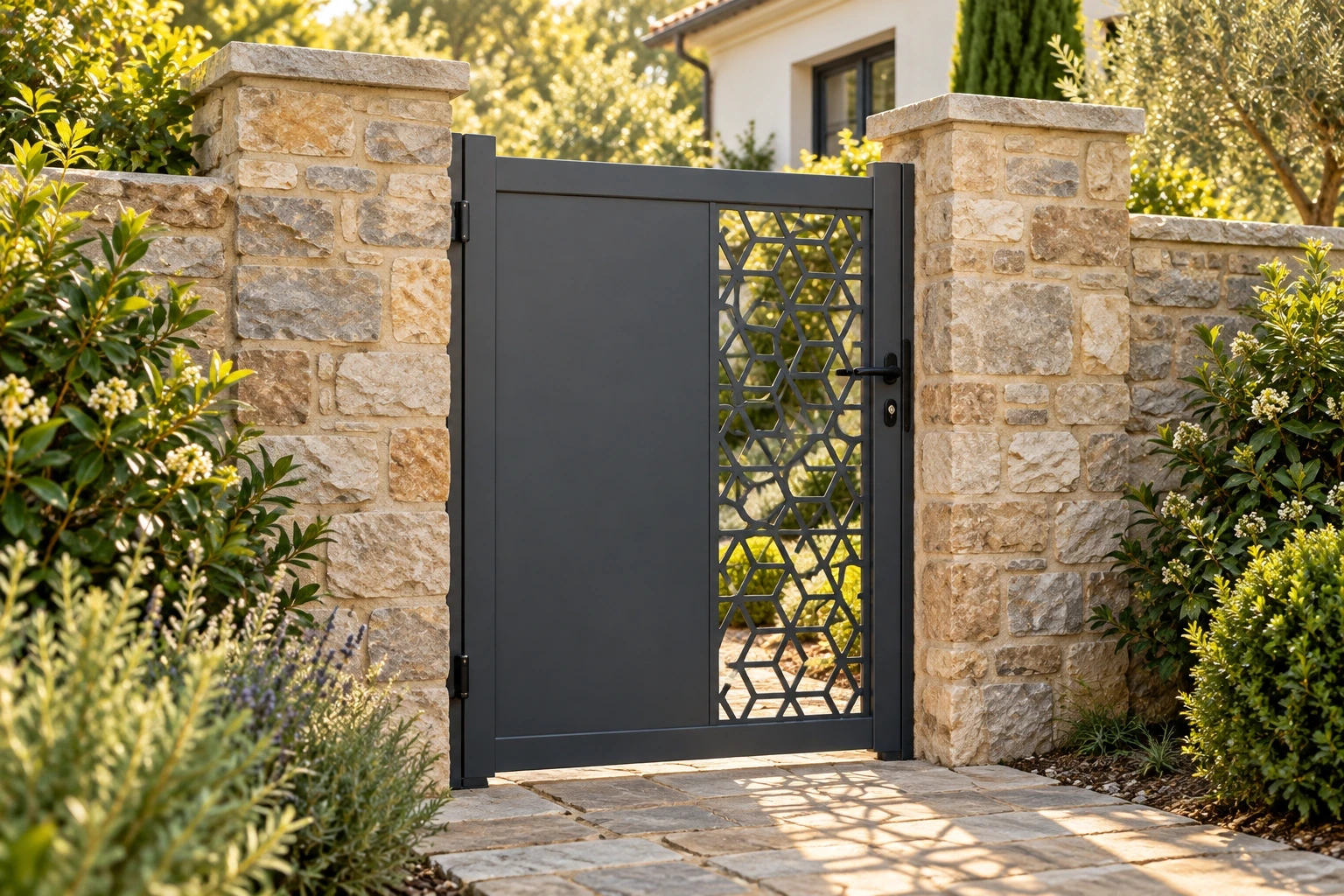

Single-leaf access beside a stone garden wall
A graphite pedestrian gate retaining its solid left infill and geometric right insert beside a stone garden wall.
Plan your specification ↗PRODUCT QUESTIONS
A clearer starting point.
What should I include when enquiring about Pedestrian Gates?
Share the required dimensions, quantity, finish, destination and installation layout. Gates components and options should be confirmed for the selected configuration. Include drawings or reference images when you email the team.
How should this product be used and maintained?
Open the leaf within its intended swing and close it using the selected latch or lock. Keep the hinge side and operating gap clear of fingers and objects. Maintain hardware according to its supplier’s instructions and have dragging or unreliable closing checked.
Which specifications are listed for Pedestrian Gates?
The illustrated product lists Material: Aluminium; Finishes: Powder-coated and wood-grain options; Customisation: Colours and sizes. Confirm the final specification for your selected configuration.
How do I prepare the site information?
Measure the clear opening, post positions, ground slope and available movement space. Confirm the opening direction, hardware and any power requirements. Share the layout with the responsible installer and our team before finalising the product schedule.
