Directional visual screening
Angled faces reduce the direct view of equipment from selected positions.

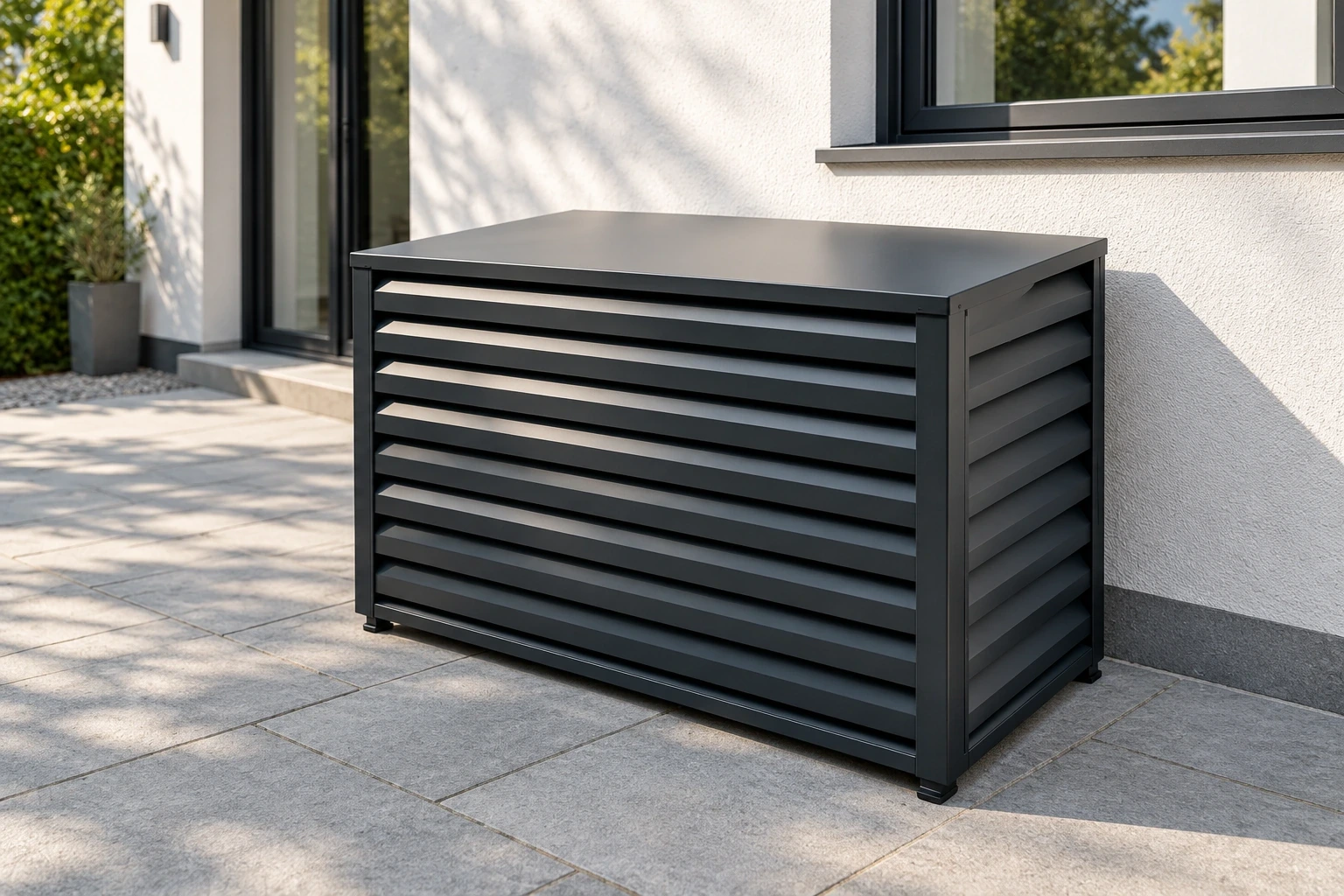

Inclined Grille Covers · product view
Air Conditioner Covers ↗
Inclined Grille Covers
Angled grille panels conceal an outdoor air-conditioning unit while retaining an open-back arrangement for air circulation and service access.

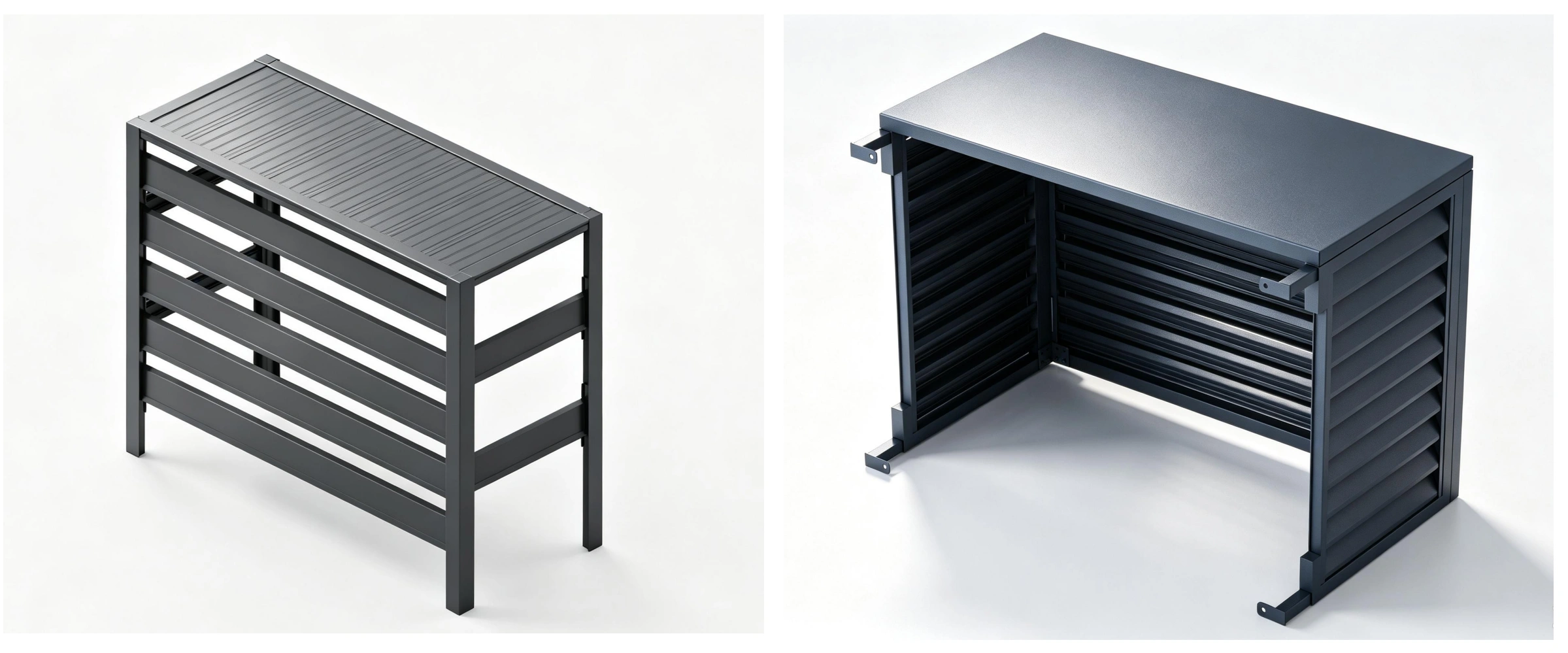

- Powder-coated aluminium options and a simple panel assembly.
- Check the unit dimensions, manufacturer airflow clearances and service access before selection.
Wholesale · OEM / ODM · Project supply
OverviewBenefitsProduct viewsFunctionsSpecificationsIn useUse & careProject checklistApplications & optionsEnquire
PRODUCT AT A GLANCE
Inclined Grille Covers: key details.
Angled grille panels conceal an outdoor air-conditioning unit while retaining an open-back arrangement for air circulation and service access.
- Materials
- Aluminium or galvanised steel
- Small external H × W × D
- 800 × 1120 × 550 mm
- Medium external H × W × D
- 1000 × 1120 × 550 mm
Catalogue reference for this product. Final dimensions, materials, components and packing are confirmed for the selected configuration.
THE PRODUCT / Air Conditioner Covers
Conceal visible equipment.
Inclined grille panels give an outdoor air-conditioning unit a more considered visual enclosure. Angled faces interrupt direct views while retaining openings in the screen, with an open-back arrangement illustrated in the range. The design must be developed around the actual equipment, including its intake and discharge direction, pipe connections and maintenance points. Confirm the required clearances with the equipment manufacturer and installer before selecting the cover dimensions.
SPECIFICATION-LED SUPPLY
Plan the product, components and finish around your market and project.
WHY CHOOSE THIS DESIGN
The details that make a difference.
An open grille arrangement
Openings remain part of the panel design, with their suitability reviewed against the equipment airflow requirements.
Equipment-led dimensions
The cover can be specified around the unit envelope, service access and surrounding architectural detail.
PRODUCT VIEWS
A setting. A closer look.
Inclined Grille Covers in context, with closer views of its form and finish.

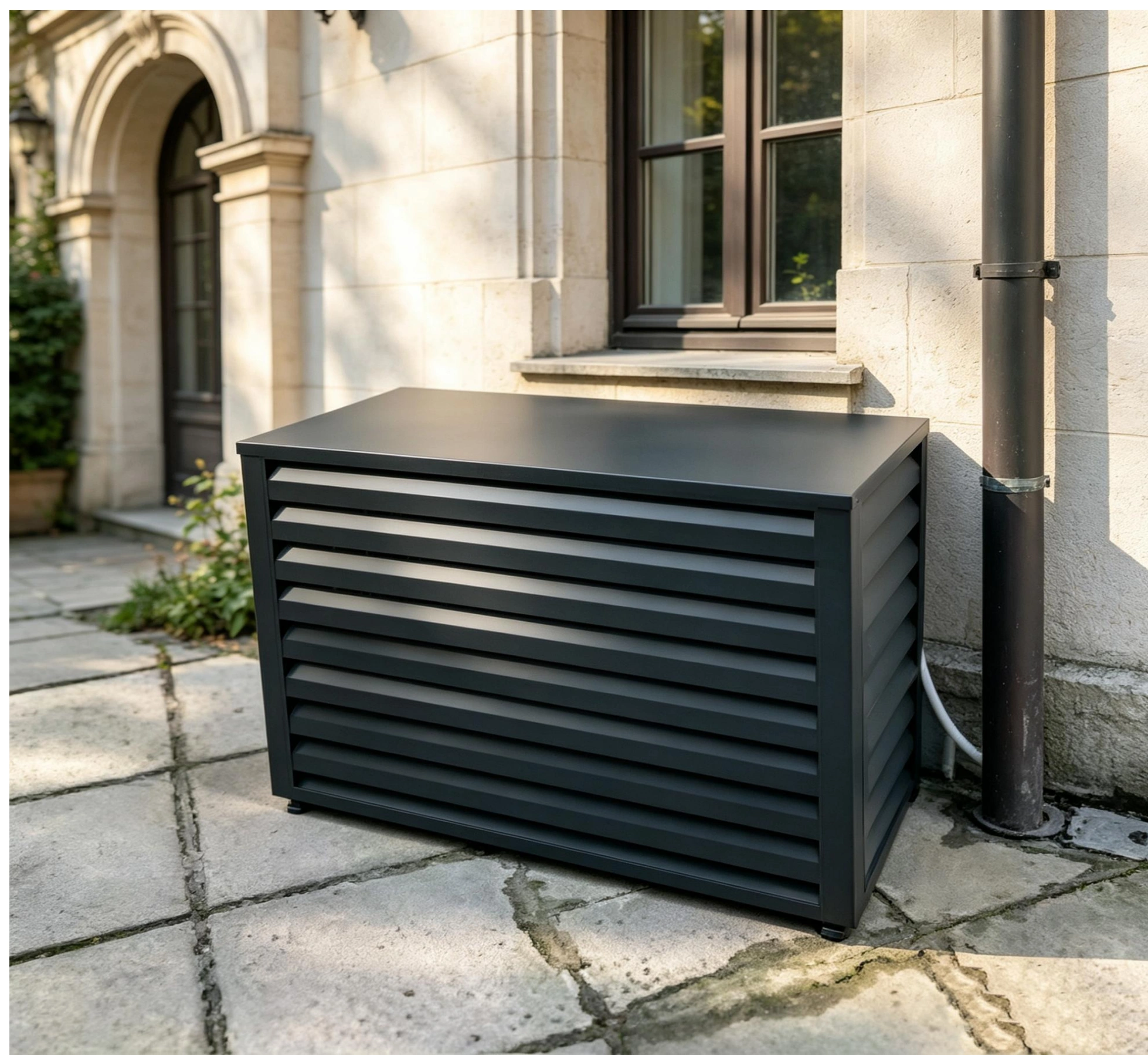

Louvred cover in a service courtyard

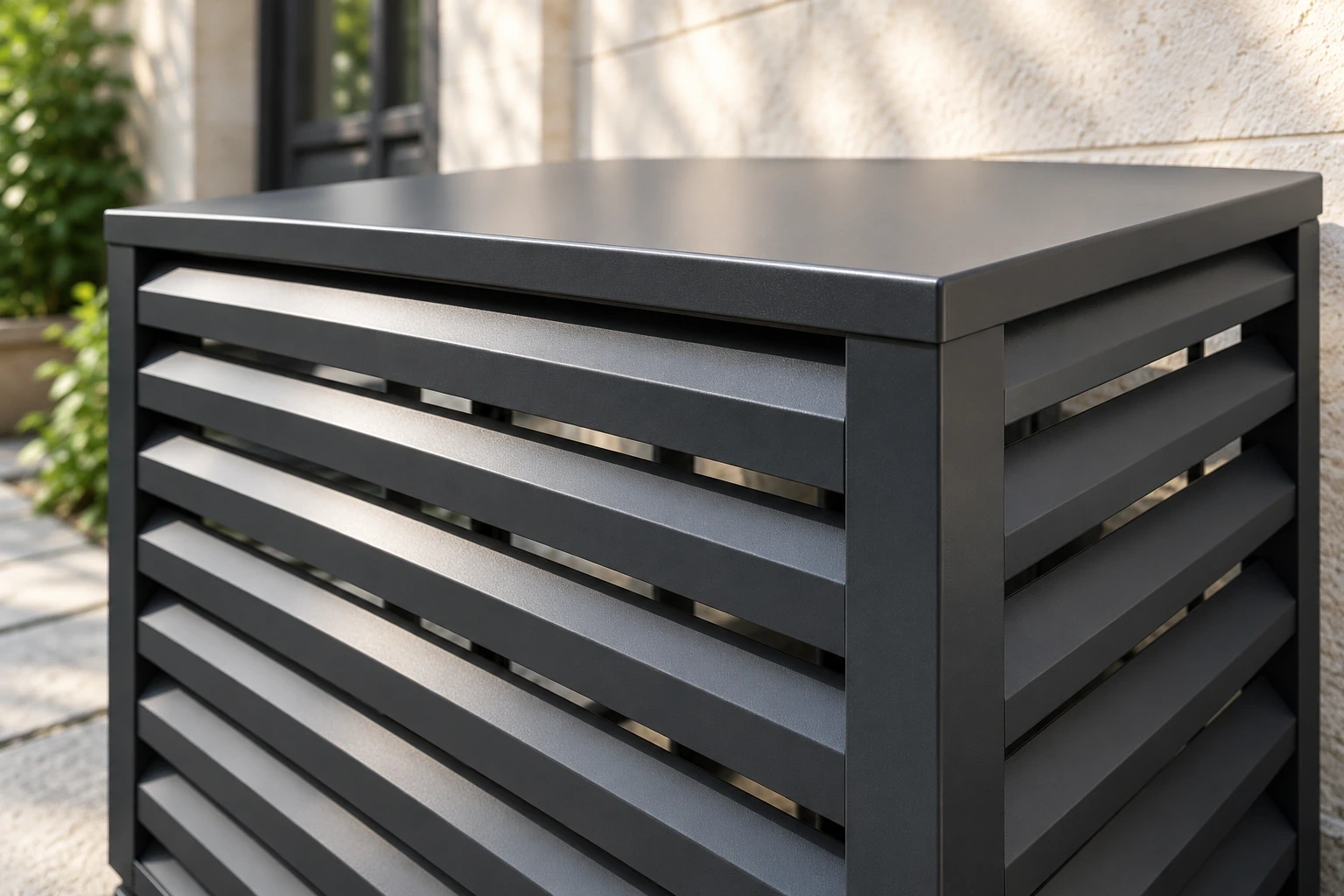

Inclined blades and ventilation openings
PRODUCT INFORMATION
Specifications & options.
Use these details to start your product selection.
| Materials | Aluminium or galvanised steel |
|---|---|
| Small external H × W × D | 800 × 1120 × 550 mm |
| Medium external H × W × D | 1000 × 1120 × 550 mm |
| Large external H × W × D | 1200 × 1120 × 550 mm |
| Customisation | Sizes, colours and specifications |
Final dimensions, materials, fittings and packing are confirmed against your selected configuration.
PLAN YOUR PROJECT
Applications & configuration.
Explore uses, installation choices and options for your product.
Equipment screening
Inclined grilles screen equipment while retaining openings for air circulation.
Specification review
Choose the size, colour and panel design together. Check airflow, heat dissipation and service access against the equipment requirements before confirming the cover.
HOW IT WORKS
Form with a practical purpose.
Conceal visible equipment
Use the grille orientation to improve the appearance of the service area from the intended viewing direction.
Retain operating access
The approved installation leaves the necessary airflow and maintenance space around the actual unit.
IN USE / THE SETTING
Inclined Grille Covers in context.
Louvred cover beside a rendered garden wall

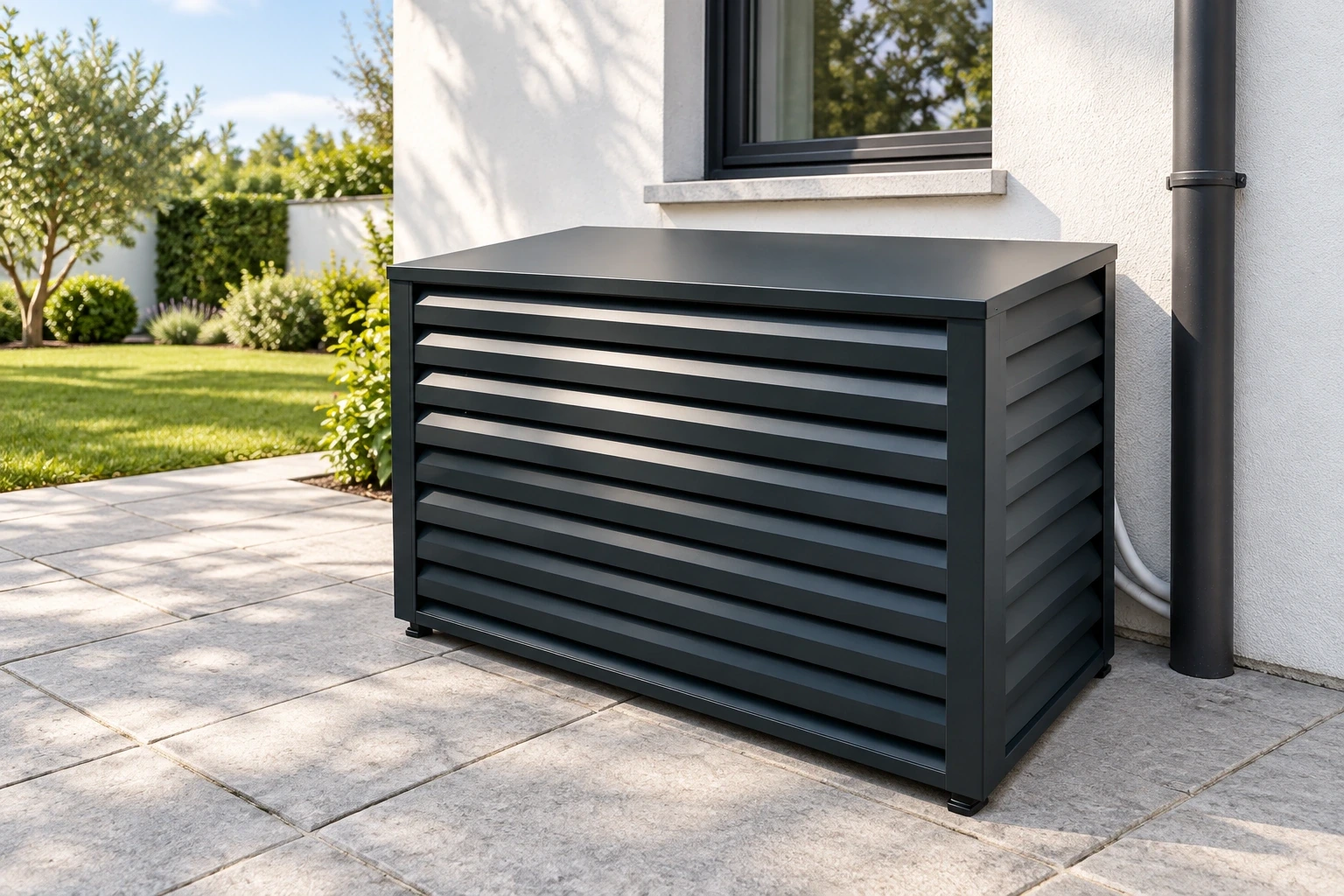

Charcoal inclined-louvre air conditioner cover on a clear paved service area.
Plan your specification ↗USE & MAINTENANCE
From the first fitting to everyday use.
General guidance for planning and looking after this product. Follow the installation and operating instructions supplied for your exact configuration.
Check the equipment requirements
Record the unit dimensions, airflow direction and service points. Compare the cover layout with the manufacturer’s required clearances before selection.
Fit independently of the equipment
Use the approved mounting arrangement. Check that panels do not obstruct intake, discharge, pipes or access to the equipment’s service parts.
Everyday use
Keep the unit’s airflow paths and service clearances unobstructed. Do not store objects against the cover or add planting that blocks the grille; arrange removal or access as specified for servicing.
Keep it in good condition
Remove leaves and debris from accessible grille openings while following the equipment’s servicing precautions.
PREPARE YOUR SPECIFICATION
A practical checklist for your enquiry.
Use these points to organise a trade brief or site layout for Inclined Grille Covers.
Equipment dimensions
Provide the actual unit dimensions and the manufacturer’s required operating and service clearances.
Airflow and access
Coordinate the cover openings with airflow paths and service access. Review suitability with the HVAC installer.
Mounting and surroundings
Include pipework, walls and surrounding ground levels. Confirm the finish and approved supporting arrangement.
Include drawings, estimated quantity, destination and finish when discussing your configuration.
IN USE / ANOTHER PERSPECTIVE
A place for Inclined Grille Covers.

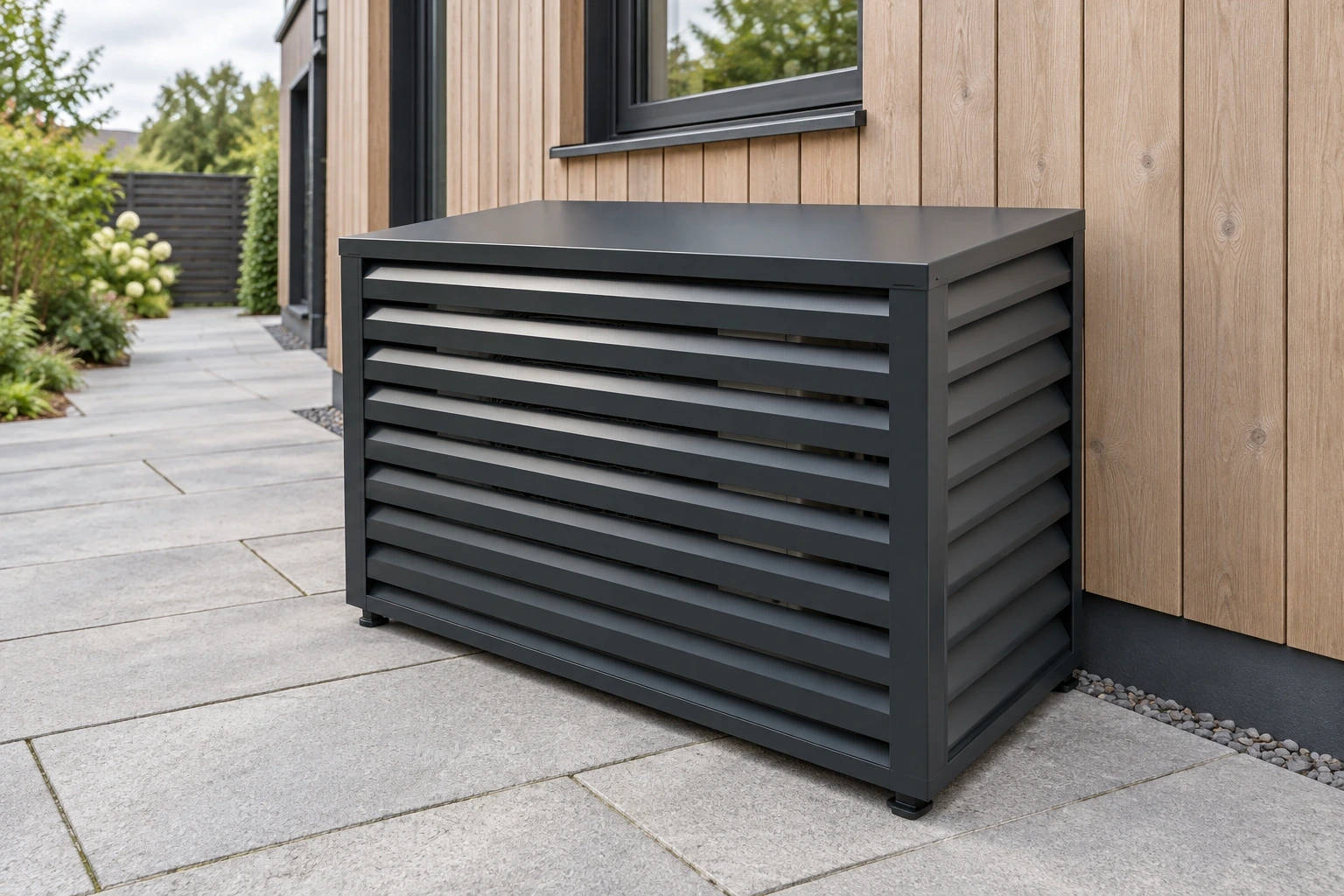

Inclined louvres beside timber cladding
Charcoal air conditioner cover with visible front and side louvre gaps beside timber cladding.
Plan your specification ↗PRODUCT QUESTIONS
A clearer starting point.
What should I include when enquiring about Inclined Grille Covers?
Share the required dimensions, quantity, finish, destination and installation layout. Air Conditioner Covers components and options should be confirmed for the selected configuration. Include drawings or reference images when you email the team.
How should this product be used and maintained?
Keep the unit’s airflow paths and service clearances unobstructed. Do not store objects against the cover or add planting that blocks the grille; arrange removal or access as specified for servicing. Inspect cover connections and monitor clearance as planting grows; have any airflow or equipment issue reviewed by the HVAC installer.
Which specifications are listed for Inclined Grille Covers?
The illustrated product lists Materials: Aluminium or galvanised steel; Small external H × W × D: 800 × 1120 × 550 mm; Medium external H × W × D: 1000 × 1120 × 550 mm. Confirm the final specification for your selected configuration.
How do I prepare the site information?
Record the unit dimensions, airflow direction and service points. Compare the cover layout with the manufacturer’s required clearances before selection. Share the layout with the responsible installer and our team before finalising the product schedule.
