Lateral opening movement
The leaf travels beside the entrance, allowing the opening arrangement to be developed without swing arcs.
Sliding Gates · product view
Gates ↗
Sliding Gates
Sliding driveway gates combine a continuous gate leaf with a track, wheels and guide fittings. Solid and open-slat designs are shown.

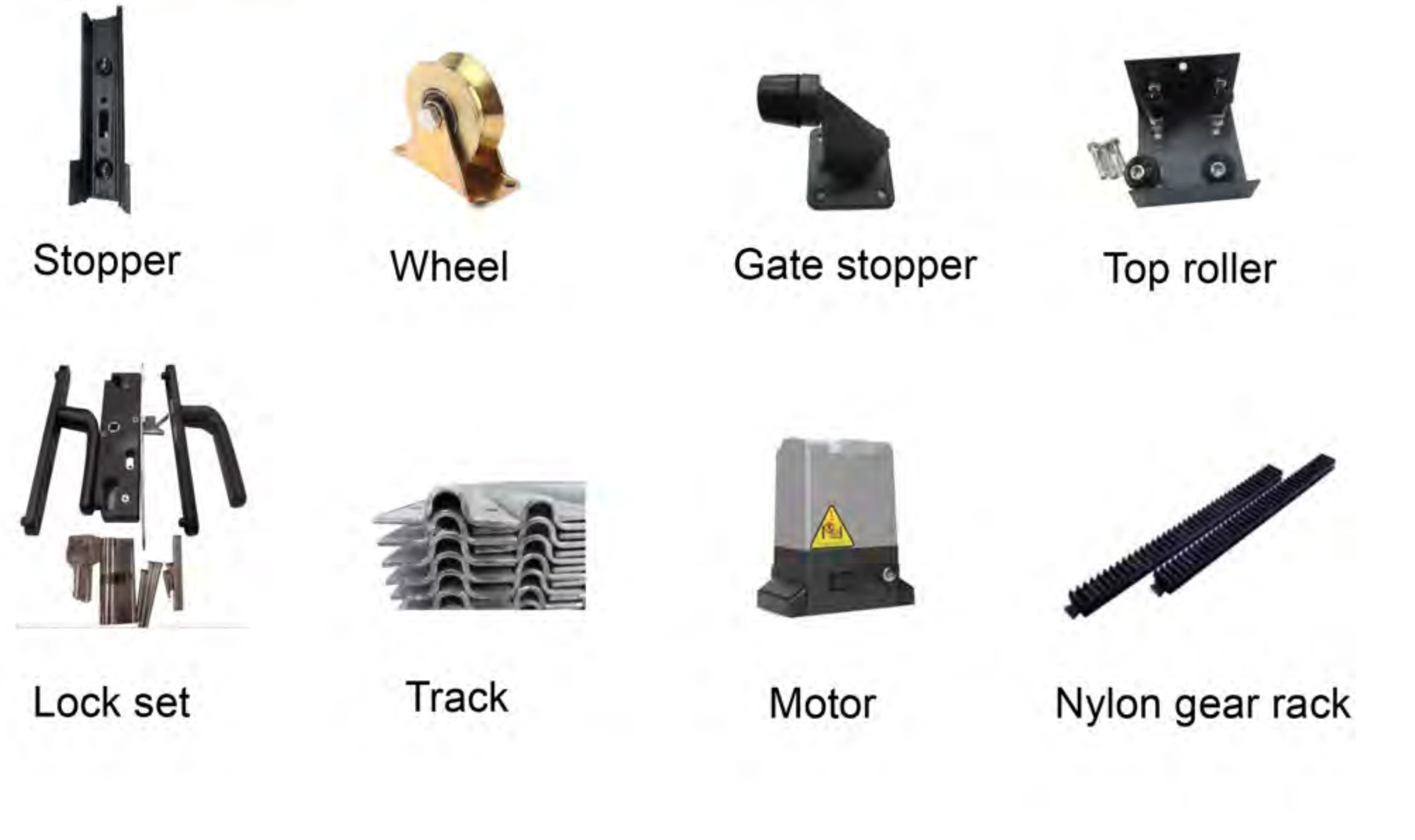

- Track, wheels, top rollers and stoppers are illustrated.
- Motor and nylon gear-rack options are shown for automated configurations.
Wholesale · OEM / ODM · Project supply
OverviewBenefitsProduct viewsFunctionsSpecificationsIn useUse & careProject checklistApplications & optionsDesign detailsEnquire
PRODUCT AT A GLANCE
Sliding Gates: key details.
Sliding driveway gates combine a continuous gate leaf with a track, wheels and guide fittings. Solid and open-slat designs are shown.
- Material
- Aluminium
- Finishes
- Powder-coated and wood-grain options
- Customisation
- Colours and sizes
Catalogue reference for this product. Final dimensions, materials, components and packing are confirmed for the selected configuration.
THE PRODUCT / Gates
Clear the vehicle opening.
A sliding gate moves across the driveway opening along a guided track arrangement. This format can suit an entrance where the design calls for lateral travel, provided there is enough clear run beside the opening. Tracks, wheels, top rollers and stoppers are illustrated in the range, with motor and gear-rack options for automated configurations. Review the complete travel route and the entrance layout before choosing the leaf size and infill.
SPECIFICATION-LED SUPPLY
Plan the product, components and finish around your market and project.
WHY CHOOSE THIS DESIGN
The details that make a difference.
Guided component system
Tracks, wheels, rollers and stops work together as the selected sliding arrangement.
Manual or automated planning
Motor and rack options can be discussed for a gate whose dimensions and site conditions have been confirmed.
PRODUCT VIEWS
A setting. A closer look.
Sliding Gates in context, with closer views of its form and finish.

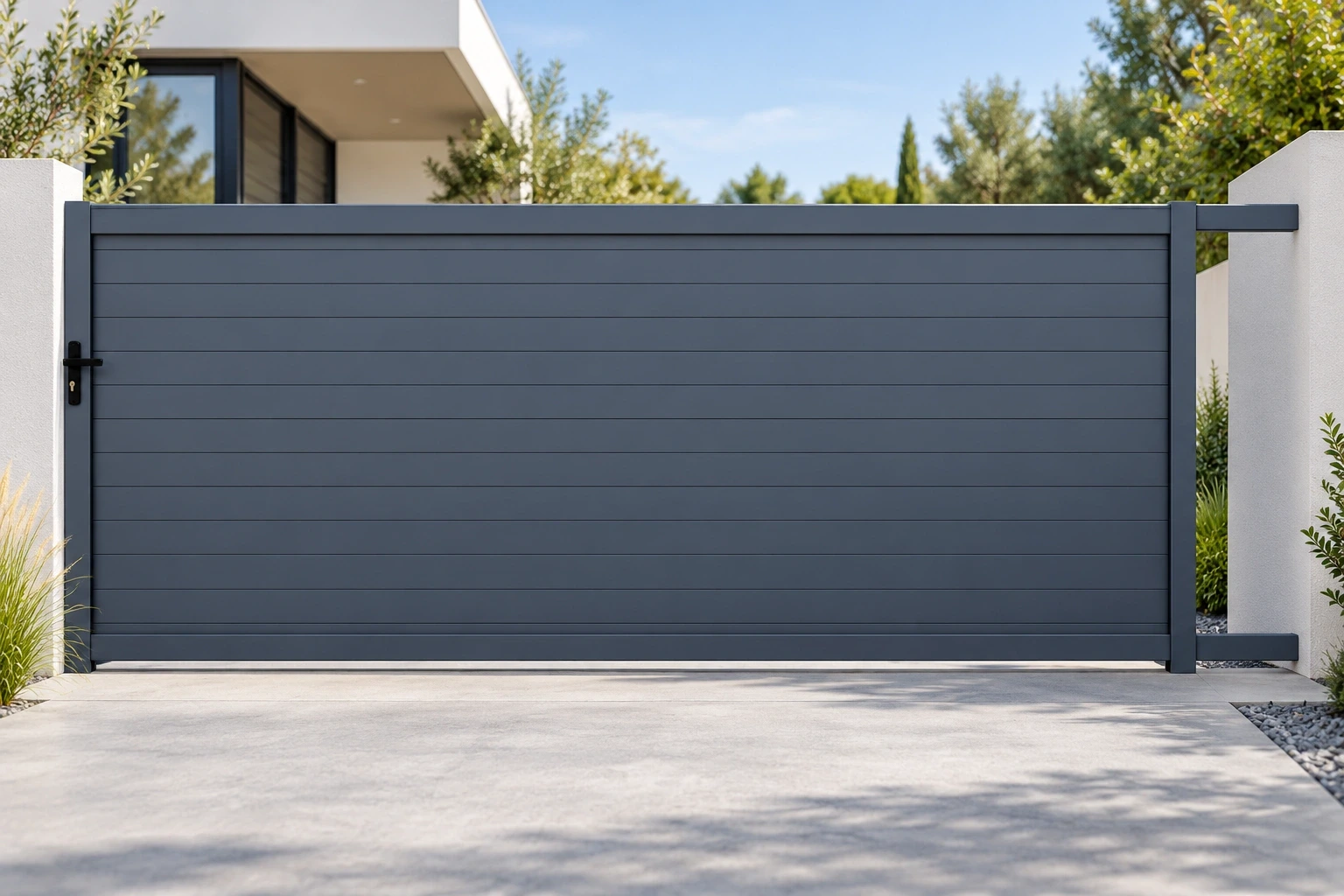

Horizontal-panel sliding gate across a drive

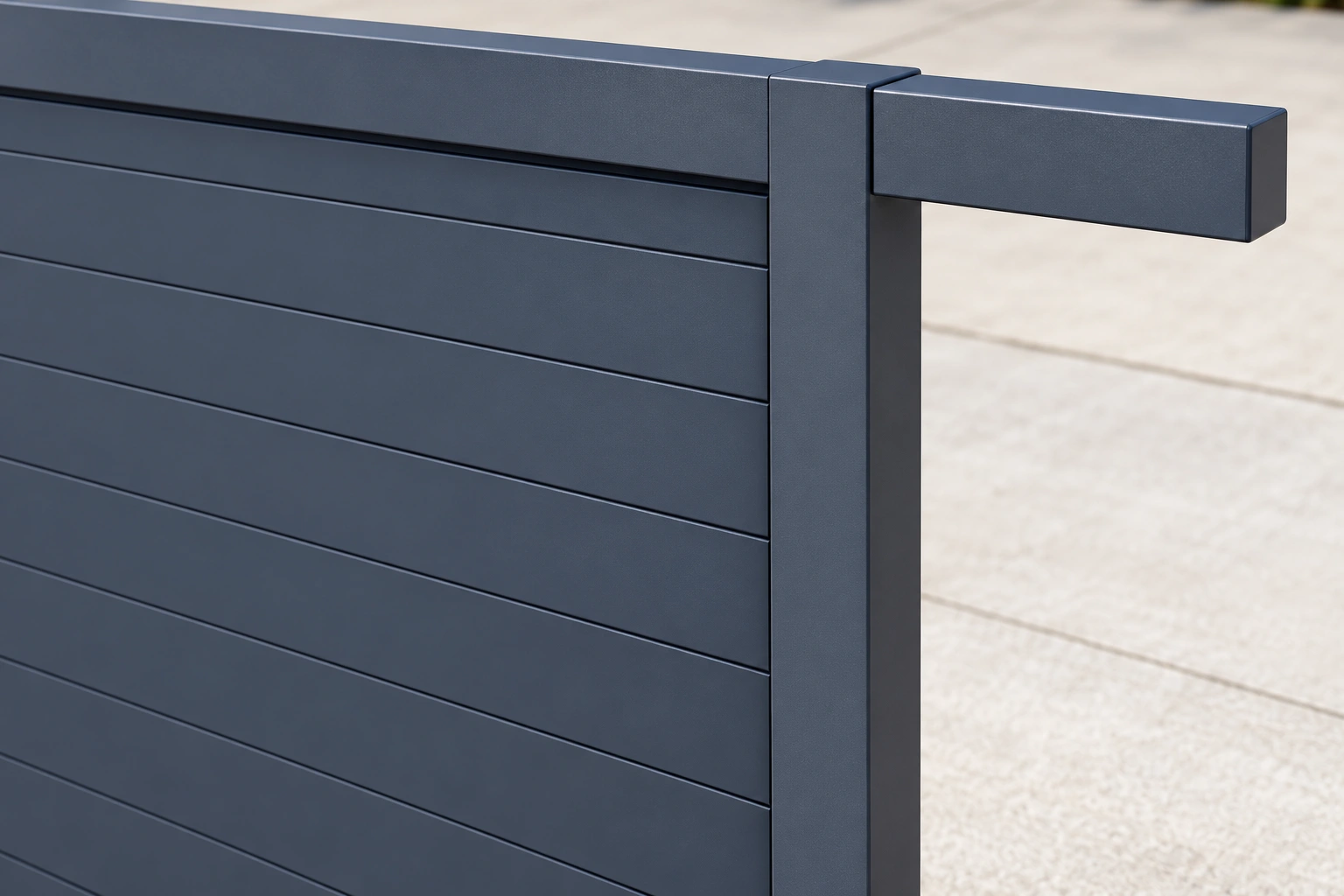

Horizontal infill and framed gate edge
PRODUCT INFORMATION
Specifications & options.
Use these details to start your product selection.
| Material | Aluminium |
|---|---|
| Finishes | Powder-coated and wood-grain options |
| Customisation | Colours and sizes |
| Infill designs | Slat, solid, picket and decorative cut-panel options |
| Reference W × H | 3000, 3500, 4000 or 4500 × 1600 mm |
Reference dimensions
| Reference W (mm) | H (mm) | Overall W1 (mm) | H1 (mm) |
|---|---|---|---|
| 3000 | 1600 | 3300 | 1650 |
| 3500 | 1600 | 3800 | 1650 |
| 4000 | 1600 | 4300 | 1650 |
| 4500 | 1600 | 4800 | 1650 |
W and H identify the product dimensions; W1 and H1 identify the overall dimensions shown for the illustrated assembly.
Final dimensions, materials, fittings and packing are confirmed against your selected configuration.
PLAN YOUR PROJECT
Applications & configuration.
Explore uses, installation choices and options for your product.
Driveway configurations
The assembled gate range includes solid, open and patterned infill for driveway entrances. Coordinate the selected finish with pedestrian gates and fencing.
Track & operating hardware
Specify the wheel, track, top guide and stopper arrangement together. Motorised configurations also require a compatible drive motor and gear rack.
HOW IT WORKS
Form with a practical purpose.
Clear the vehicle opening
The guided leaf moves along its specified path to open and close the entrance.
Coordinate side space
Plan the full travel run beside the driveway, including guides, stops and the area behind the moving leaf.
A CLOSER LOOK
Design & construction.
Explore the illustrated components and configuration options. Select an image to enlarge it.
IN USE / THE SETTING
Sliding Gates in context.

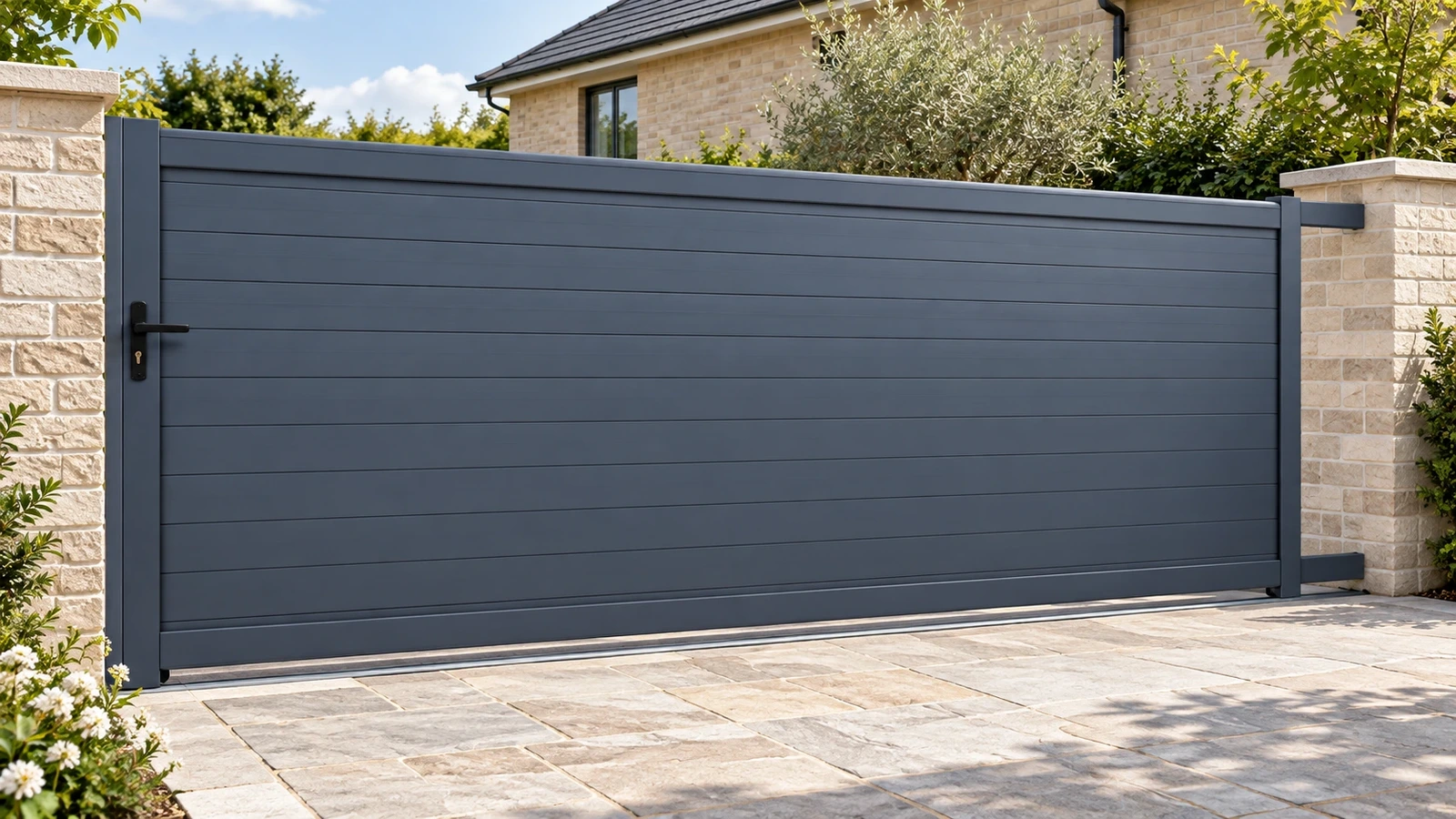

Solid sliding gate on a paved driveway
A continuous graphite sliding gate with closed horizontal boards and a lower wheel track across a residential driveway.
Plan your specification ↗USE & MAINTENANCE
From the first fitting to everyday use.
General guidance for planning and looking after this product. Follow the installation and operating instructions supplied for your exact configuration.
Survey the entrance
Measure the clear opening, post positions, ground slope and available movement space. Confirm the opening direction, hardware and any power requirements.
Install and commission
Follow the approved gate and hardware drawings. Check alignment, stops and operating clearance; powered equipment should be commissioned by the responsible installer.
Everyday use
Keep the full travel path and track clear. Stay clear of the moving leaf and guide points, and operate an automated configuration according to its commissioned controls.
Keep it in good condition
Remove stones, leaves and debris from the track without placing hands near moving components.
PREPARE YOUR SPECIFICATION
A practical checklist for your enquiry.
Use these points to organise a trade brief or site layout for Sliding Gates.
Clear opening and movement
Provide the clear opening, leaf layout and ground levels. Allow for the swing arc or sliding run of the chosen design.
Hardware and operation
Agree the hinges, locking arrangement, stops and any track or roller requirements. Confirm responsibility for powered equipment.
Entrance package
Coordinate posts, infill, finish and adjoining fencing. Include access direction and the intended daily use.
Include drawings, estimated quantity, destination and finish when discussing your configuration.
IN USE / ANOTHER PERSPECTIVE
A place for Sliding Gates.

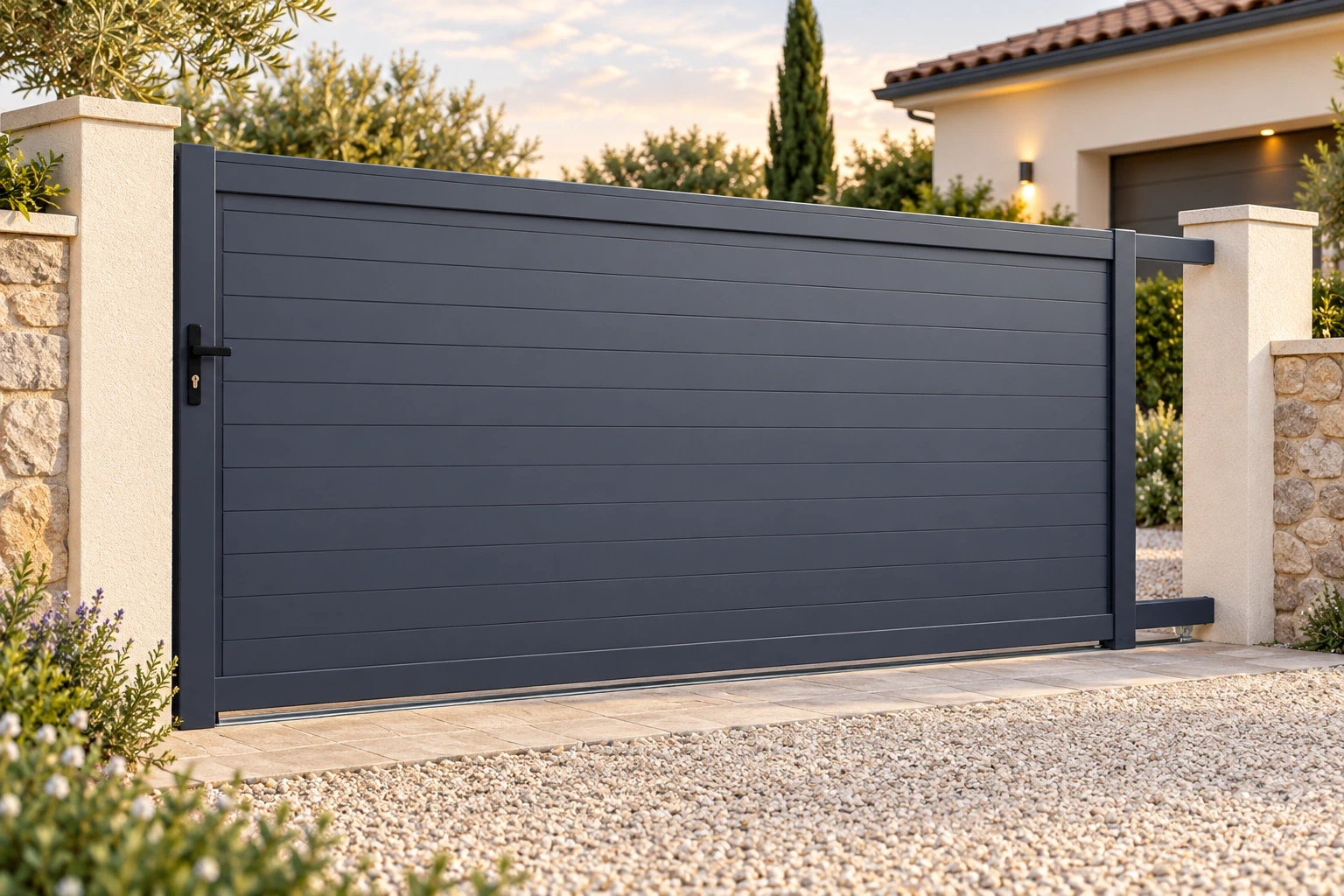

Sliding access beside a garden boundary
A single graphite horizontal-board sliding gate with visible lower track and rear rail extensions beside a garden boundary.
Plan your specification ↗PRODUCT QUESTIONS
A clearer starting point.
What should I include when enquiring about Sliding Gates?
Share the required dimensions, quantity, finish, destination and installation layout. Gates components and options should be confirmed for the selected configuration. Include drawings or reference images when you email the team.
How should this product be used and maintained?
Keep the full travel path and track clear. Stay clear of the moving leaf and guide points, and operate an automated configuration according to its commissioned controls. Inspect wheels, rollers and stops; have irregular travel, binding or unusual noise assessed by the installer.
Which specifications are listed for Sliding Gates?
The illustrated product lists Material: Aluminium; Finishes: Powder-coated and wood-grain options; Customisation: Colours and sizes. Confirm the final specification for your selected configuration.
How do I prepare the site information?
Measure the clear opening, post positions, ground slope and available movement space. Confirm the opening direction, hardware and any power requirements. Share the layout with the responsible installer and our team before finalising the product schedule.
